Products Description

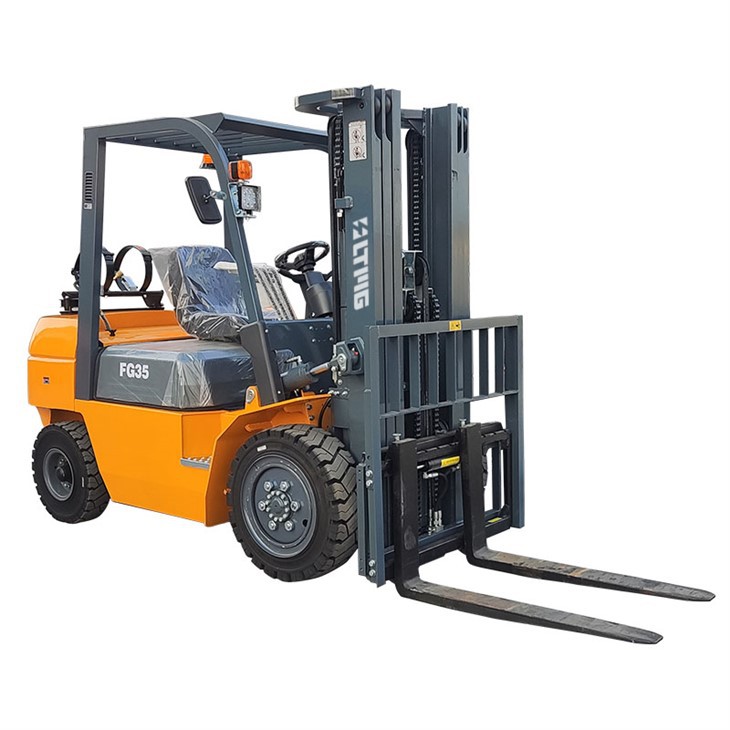

Introducing our durable 3.5-ton LPG forklift, a powerhouse designed to combine strength, precision, and operator comfort, setting new benchmarks in indoor and outdoor material handling. This robust yet refined machine is engineered to enhance productivity while ensuring a fatigue-free operating experience.
One of its standout features lies in the thoughtful cab design. Recognizing the importance of operator comfort, we've incorporated generous foot space to significantly reduce fatigue during prolonged use. The newly designed, extra-wide, non-slip steps facilitate easy and safe entry and exit, promoting safety and efficiency at every shift start and end.
Going beyond conventional controls, we offer an optional electro-hydraulic proportional control system, introducing a new level of sensitivity and precision to load handling. This advanced system, with intuitive levers, places complete operational control at the operator's fingertips, enabling smooth, accurate movements. Coupled with a comfortable armrest, it further diminishes operator fatigue, ensuring optimal performance even during the most demanding tasks.
Our commitment to durability extends to the innovative lifting mechanisms. Complementing the soft landing system, our forklift employs a soft lifting system, specifically designed for triplex mast and full-free duplex mast configurations. This enhancement dramatically decreases noise and vibrations, contributing to a quieter work environment and extending the longevity of the mast components by reducing wear and tear.
The durable LPG forklift is not just about heavy lifting; it's a testament to intelligent design and user-centric features that elevate everyday operations. By integrating advanced control systems, ergonomic enhancements, and sophisticated lifting technologies, we've created a machine that not only withstands the test of time but also enhances operator satisfaction and overall operational efficiency.
In summary, our 3.5-ton LPG forklift is more than a durable workhorse; it's a strategic investment in your operational excellence. It's built to perform tirelessly in varied environments, backed by advanced features that prioritize safety, precision, and operator comfort. Embrace the future of LPG-powered material handling with a machine that redefines durability and operational finesse.

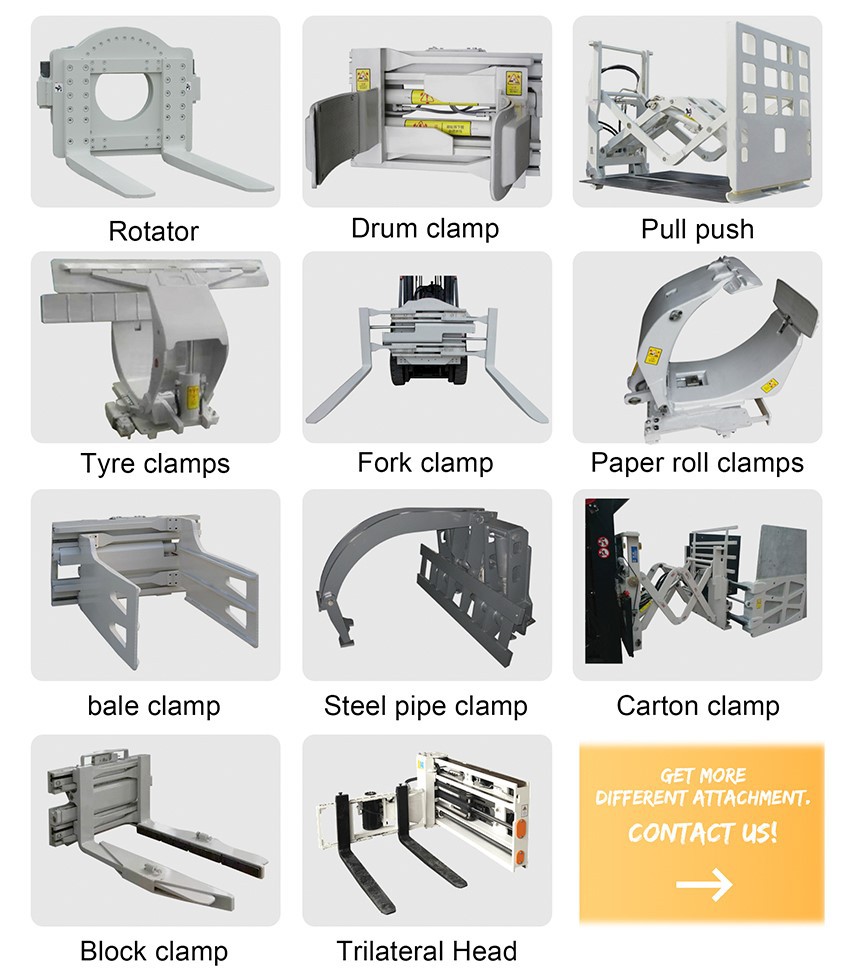

attachment
feedback from client
|
Model |
FG35 |
|||
|
Power Type |
LPG & Gasoline |
|||
|
Rated Capacity |
kg |
3500 |
||
|
Load Centre |
mm |
500 |
||
|
Lift Height |
mm |
3000 |
||
|
Fork Size |
L×W×T |
mm |
1070×125×50 |
|
|
Mast Tilt Angle |
F/R |
Deg |
6°/12° |
|
|
Front Overhang (Wheel center to fork face) |
mm |
485 |
||
|
Ground Clearance(Bottom of mast) |
mm |
140 |
||
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2775 |
|
|
Overall Width |
mm |
1225 |
||
|
Mast Lowered Height |
mm |
2115 |
||
|
Mast Extended Height(With backrest) |
mm |
4150 |
||
|
Overhead Guard Height |
mm |
2090 |
||
|
Turning Radius (outside) |
mm |
2480 |
||
|
Speed |
Travel (Empty load) |
km/h |
20 |
|
|
Lifting (Full load) |
mm/s |
440 |
||
|
Max.Gradeability (No load/Full load) |
% |
20 |
||
|
Tire |
Front |
mm |
28×9-15-12PR |
|
|
Rear |
mm |
6.50-10-10PR |
||
|
Wheelbase |
mm |
1700 |
||
|
Service weight |
kg |
4500 |
||
|
Battery |
Voltage/Capacity |
V/Ah |
12/80 |
|
|
Engine |
Model |
K25 |
||
|
Manufacture |
GCT (NISSAN) |
|||
|
Rated output/r.p.m. |
kw |
35.6/2100 |
||
|
Rated torque/r.p.m. |
N·m |
176.5/1600 |
||
|
No.of Cylinder |
4 |
|||
|
Bore×Stroke |
mm |
89×100 |
||
|
Displacement |
cc |
2488 |
||
|
Fuel Tank Capacity |
L |
60 |
||
|
Transmission |
Type |
Hydraulic |
||
|
Stage |
FWD/RVS |
1/1 |
||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
