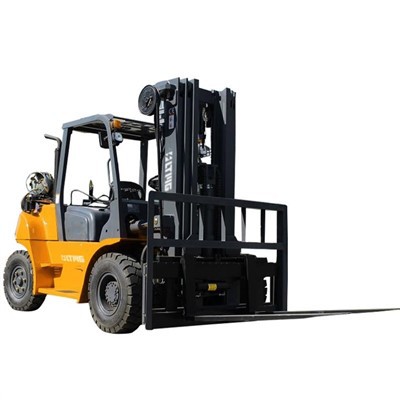

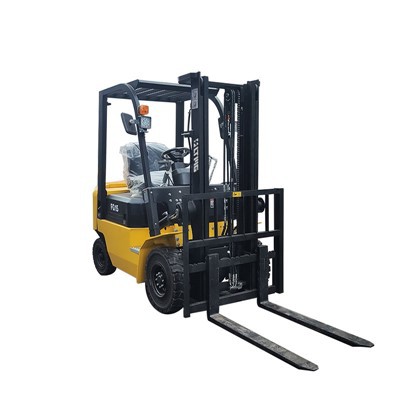

LTMG LPG Forklift 2-5 Tonne

Model: FG20-FG50
Rated Load:2000-5000kg
maximum gradeability(Full-load/No-load): 15/20%
Discover the efficiency and reliability of LTMG's LPG forklifts. Designed for versatility, these forklifts excel in various industries, offering robust performance, ergonomic design, and exceptional fuel efficiency. Explore our range today for your material handling needs
Send Inquiry
Chat Now

Product Introduction

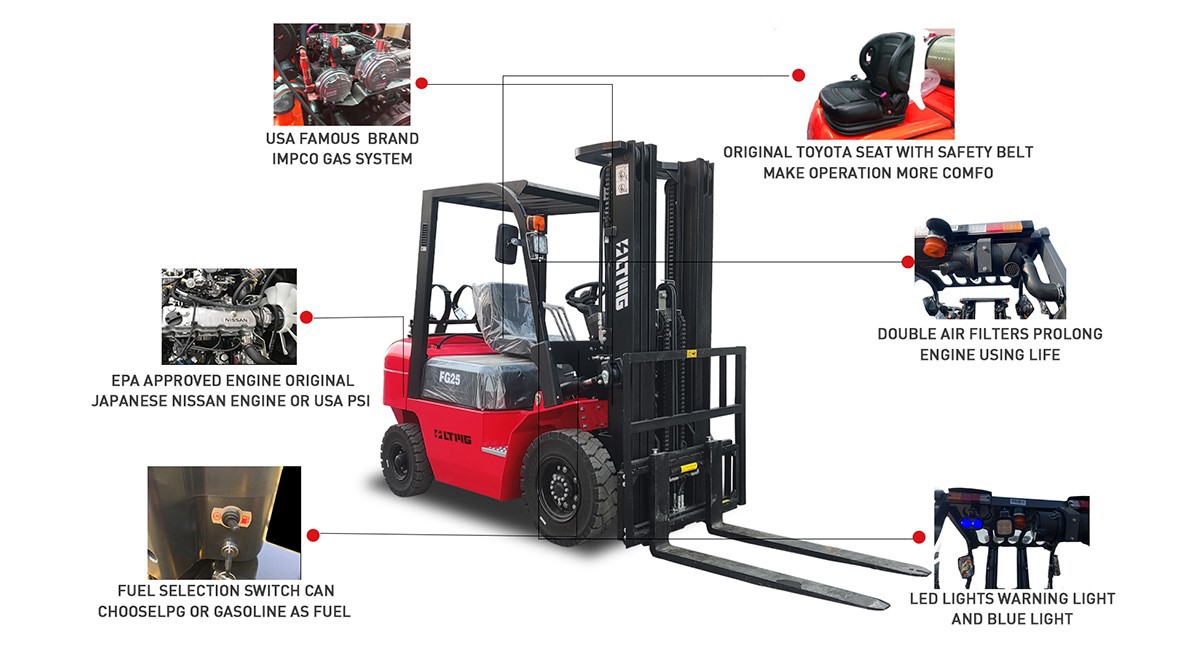

Key Features:

EPA Approved Engines: The LTMG LPG Forklift is equipped with a choice of engines that meet stringent environmental standards. You can opt for the original Japanese Nissan engine, renowned for its reliability and performance, or the USA PSI engine, which is equally robust and compliant with EPA regulations.

USA Famous Brand Impco Gas System: Our forklifts come with the renowned Impco gas system, a leading name in the USA for its high-quality LPG conversion technology. This system ensures a smooth and efficient fuel delivery, enhancing the forklift's performance and reliability.

Fuel Selection Switch: The innovative fuel selection switch allows operators to choose between LPG and gasoline, providing flexibility and ensuring the forklift can operate in various conditions without compromising on performance.

Original Toyota Seat with Safety Belt: For operator comfort and safety, the LTMG LPG Forklift can be fitted with an original Toyota seat that offers superior support and adjustability. The inclusion of a safety belt ensures that the operator is secure during operation, reducing the risk of accidents.

Double Air Filters: To prolong the engine's life and maintain optimal performance, the LTMG LPG Forklift features double air filters. These filters work to remove dust and debris, ensuring that only clean air reaches the engine, which can significantly reduce wear and tear.

LED Lights: The forklift is equipped with advanced LED lighting, including a warning light and a blue light for enhanced visibility. The LED lights are not only energy-efficient but also provide a clear view of the working area, improving safety during nighttime or low-light operations.



LPG Forklift details



Additional Highlights:

Ergonomic Design: The LTMG LPG Forklift is designed with the operator in mind, featuring an ergonomic control layout that reduces fatigue and increases productivity.

Low Emission Standards: By using LPG as a fuel option, the forklift helps to reduce greenhouse gas emissions, contributing to a cleaner and more sustainable environment.

High-Performance Tires: Durable and puncture-resistant tires ensure a smooth ride and better traction on various surfaces, enhancing the forklift's stability and safety.

Easy Maintenance: The LTMG LPG Forklift is designed for easy access to key components, making routine maintenance and service checks more convenient and less time-consuming.

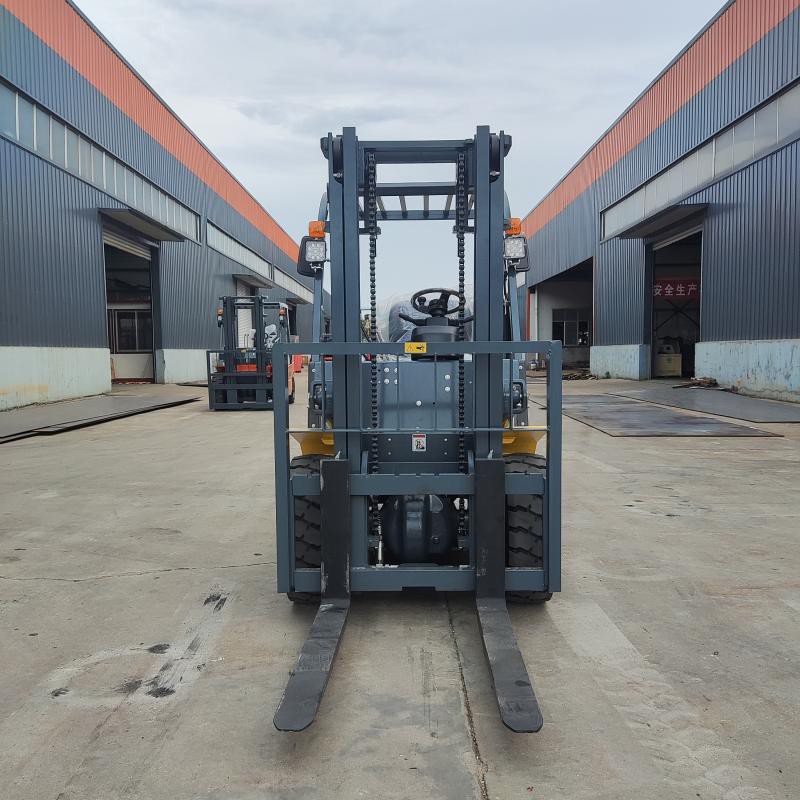

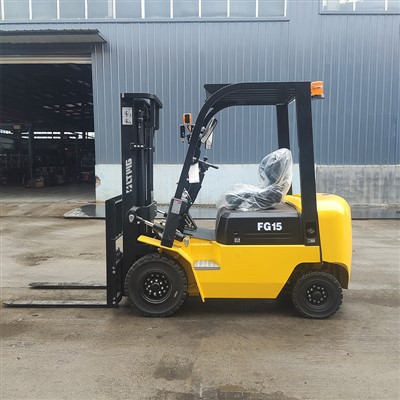

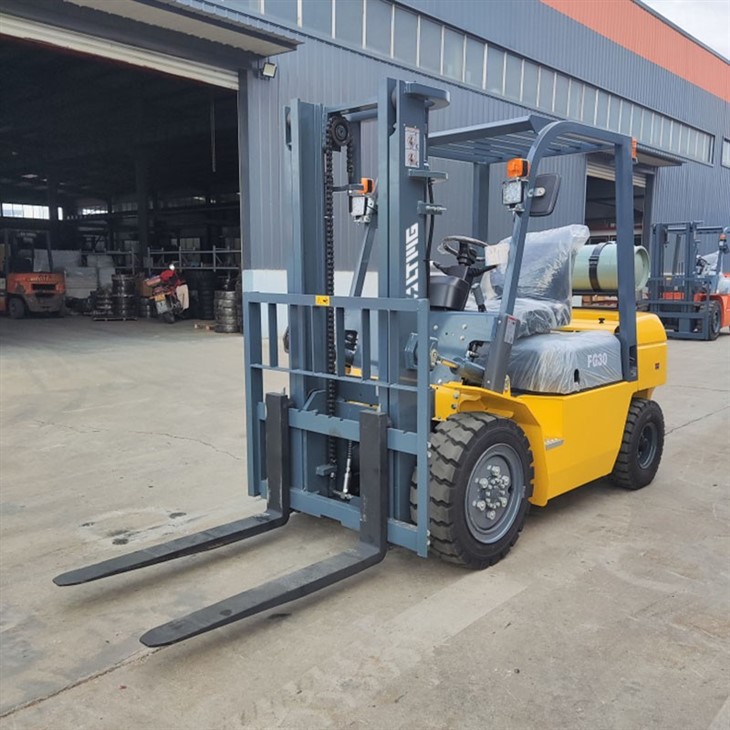

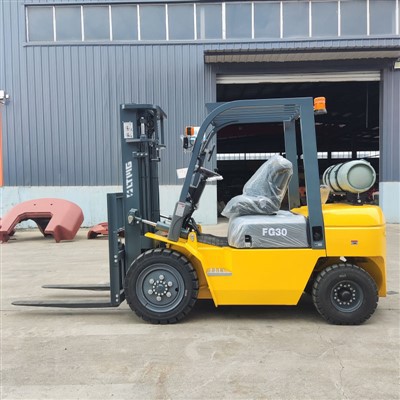

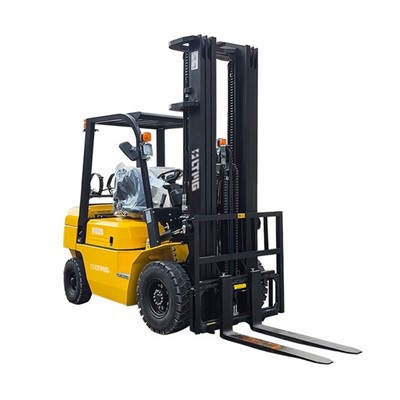

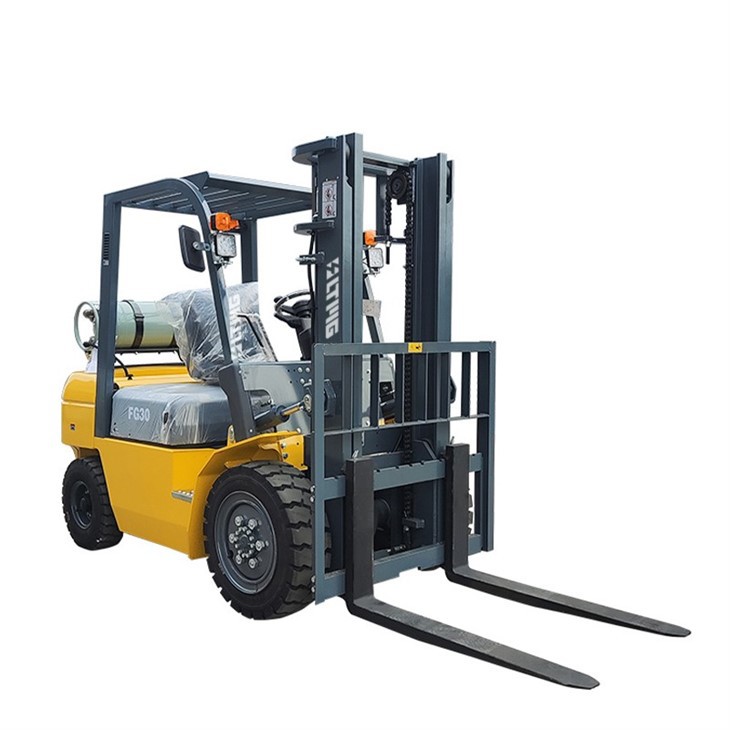

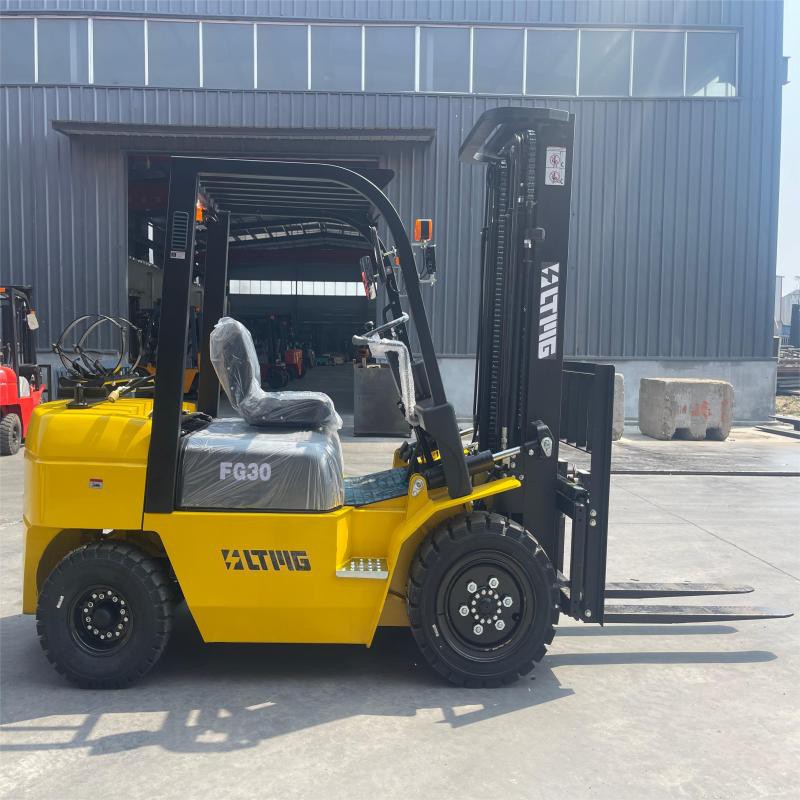

lpg forklift pictures



lpg forklift

FG20-FG40 LPG forklift specifications



Model   FG20 FG25 FG30 FG35 FG40
Rated lifting load kg 2000 2500 3000 3500 4000
Load center distance mm   500 500 500
Free lifting height mm 150 160 160 150
overall length (With fork/Without fork) mm 3422/2502 3646/2576 3752/2682 3763/2693 4000/2930
Width mm 1170 1225 1290
Overhead guard height mm 2070 2090 2180
Wheelbase mm 1600 1700 1900
Minimum ground clearance mm   135 140
Mast tilt angle (front/rear) %   6° /12° 6° /12°
Tire no. (before)   7.00*12-12PR 28*9-15-14PR 250-15-16PR
Tire no. (after)   6.00*9-1OPR 6.5-10-1OPR 7.00-12-12PR
Minimum turning radius (outer side) mm 2170 2240 2400 2420 2710
Minimum right angle aisle width mm 3900 3970 4260 4260 4750
Fork size mm 1070*100*45 1220*125*45 1220*150*50
maximum working speed(Full-load/No-load) km/h 17/19 18/19 19/19 19/19
maximum lifting speed(Full-load/No-load) mm/s 530/550 440/480 330/370 340/380
maximum gradeability(Full-load/No-load) %   15/20
Forklift weight kg 3340 3700 4270 4520 4970
Engine model   chinese engine

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

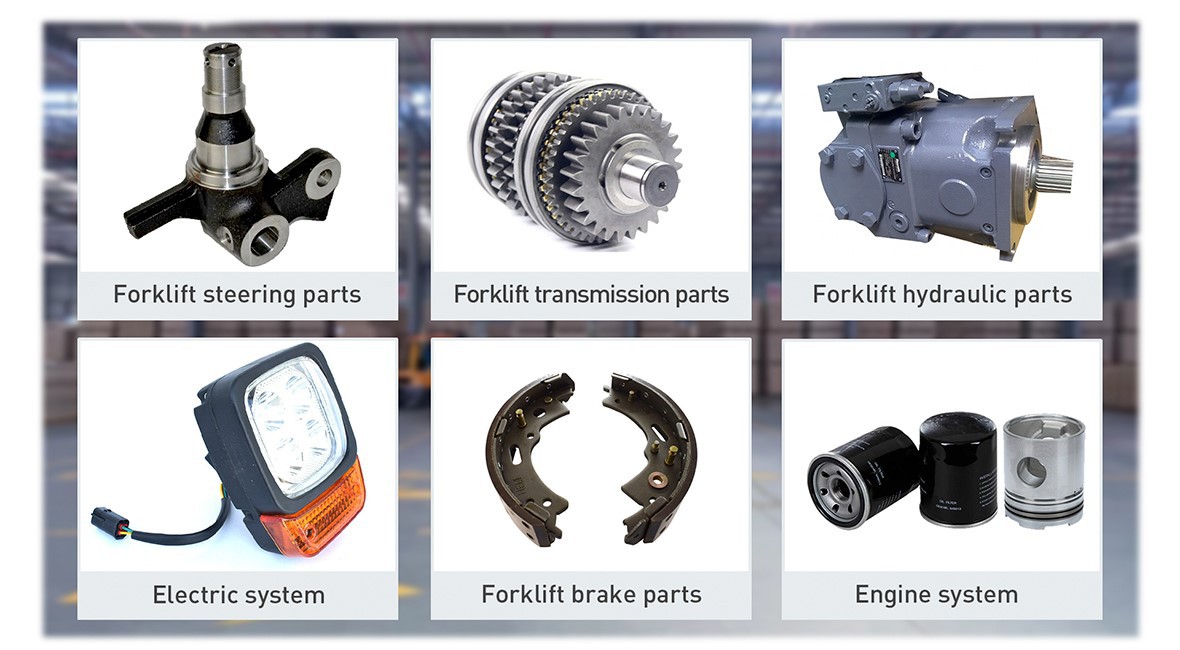

Forklift Hydraulic Parts



Steering Parts: Precise and durable steering components that ensure smooth maneuverability and control.

Transmission Parts: Reliable gears and transmission systems designed for seamless operation and power delivery.

Hydraulic Parts: Advanced hydraulic components for efficient lifting and load handling capabilities.

Electric System: Cutting-edge electrical components for reliable power supply and control systems.

Brake Parts: Robust brake systems for superior stopping power and safety.

Engine System: Powerful and efficient engine components for sustained performance under various conditions.

LPG Counterbalance Forklift



certificate



LTMG LPG forklift trucks have obtained CE certification, confirming their adherence to the stringent safety, performance, and environmental standards mandated by the European Union for industrial equipment. This prestigious certification validates the thorough design, testing, and production methods applied to our LPG forklifts, ensuring they meet the rigorous quality standards necessary for use in the European market. By achieving the CE mark, our forklifts unequivocally demonstrate their suitability for European operations, meeting the varied requirements of customers who prioritize adherence to regulations, safety, and operational efficiency in their material handling activities.



LPG Powered Forklift
