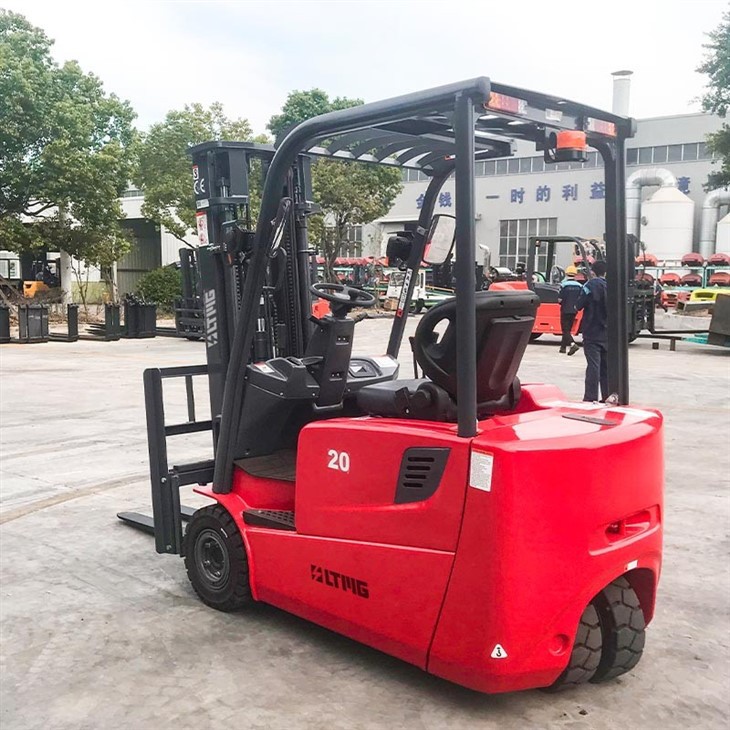

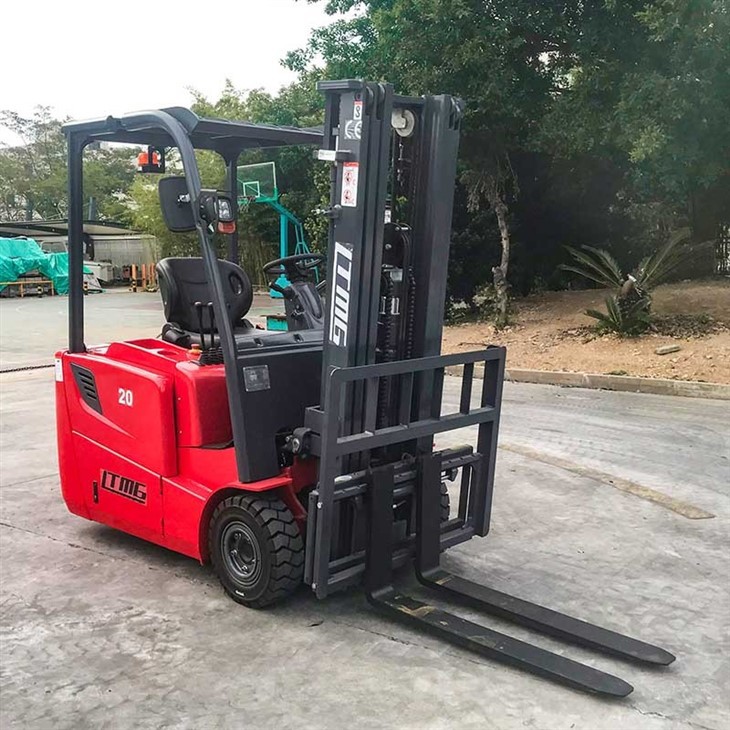

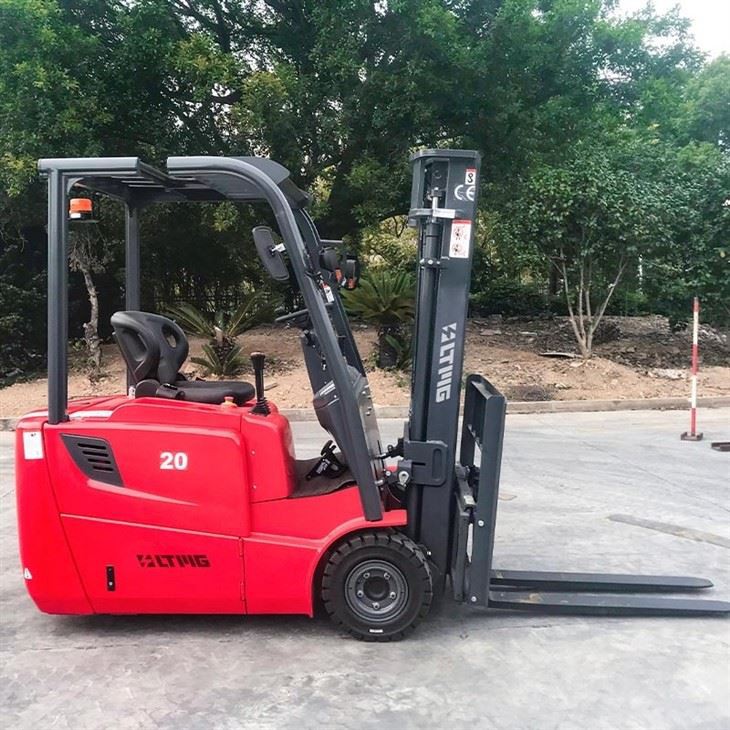

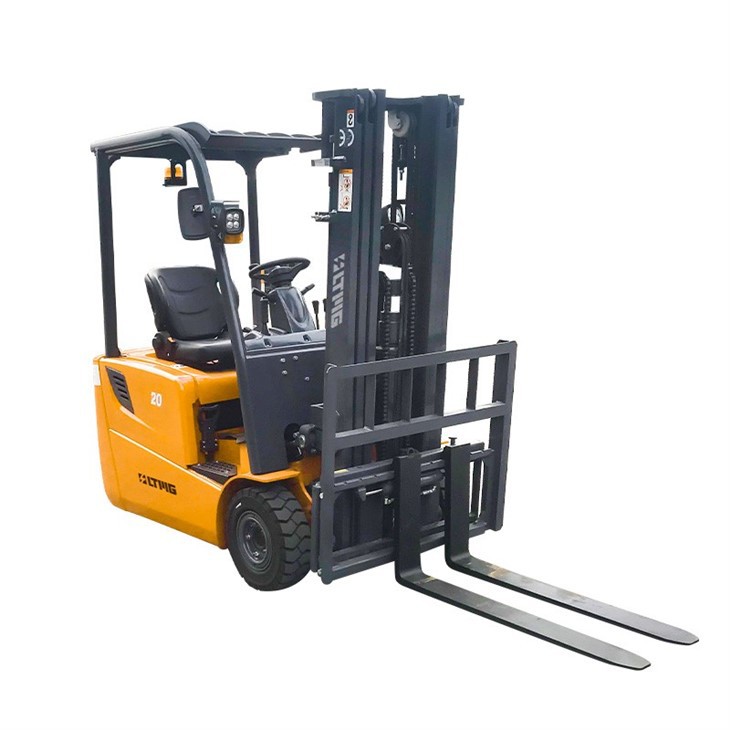

3-Wheels electric forklift Description
Three-wheel electric forklifts present several compelling advantages:
1. Maneuverability: With their compact design and three-point steering system, these forklifts excel in tight spaces and narrow aisles. The rear wheels pivot, allowing for a smaller turning radius, which increases agility and navigation ease in confined warehouse environments.
2. Efficiency: Electric-powered forklifts consume less energy and produce zero emissions, making them environmentally friendly and cost-effective over the long term. The electric motor converts energy more efficiently, reducing operational costs through lower energy bills and minimal maintenance on the engine.
3. Ease of Operation: Three-wheel electric forklifts are typically simpler to operate due to their straightforward driving mechanism. They often feature intuitive controls and ergonomic designs, enhancing operator comfort and productivity.
4. Weight Distribution: The front-heavy design of a 3-wheel electric forklift distributes the load close to the ground, offering improved stability when lifting and transporting loads. However, this requires careful balance management when empty or carrying lighter loads.
5. Lower Noise Levels: Electric motors run quietly, creating a more peaceful and less stressful work atmosphere, which can improve employee concentration and overall job satisfaction.
6. Low Maintenance: Without the complexities of an internal combustion engine, electric forklifts require less frequent and less intensive maintenance, saving time and money on repairs and part replacements.
7. Versatility: While ideal for indoor use, certain models of 3-wheel electric forklifts are designed to handle light outdoor duties as well, although they may not be as robust as dedicated outdoor models.
In summary, the three-wheel electric forklift is a space-saving, cost-effective, and environmentally friendly solution that thrives in warehouse applications where space optimization and precision handling are critical.
Products Description
Model | FB20S | ||
Power type | Electric | ||
Rated Capacity | kg | 2000 | |
Load Centre | mm | 500 | |
Lift Height | mm | 3000 | |
Turning Radius(outside) | mm | 1690 | |
Min. insecting aisle | mm | 2300 | |
Speed | Travel (Empty load) | km/h | 14 |
Lifting (Full load) | mm/s | 300 | |
Max. Gradeability | % | 15 | |
Tire | Front | 18×7-8 | |
Rear | 16×6-8 | ||
Wheelbase | mm | 1460 | |
Service Weight | kg | 3760 | |
Motor | Driven Motor | kw | 2×4.5 |
Lift Motor | kw | 8.6 | |
Battery | Voltage/Capacity | V/Ah | 48/560 |
Controller | Manufacturer | CURTIS | |
Type | AC | ||
Operating Pressure for Attachment | Mpa | 14.5 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail
FAQ
Q: How do 3-wheel electric forklifts differ from 4-wheel ones?
Q: Are 3-wheel electric forklifts suitable for outdoor use?
