Products Description

Model		FB10
Power type		Electric
Rated capacity	mm	1000
Load center	mm	500
Tire type		solid tire
Quantity of wheels		2 X /2
Tires Size		16×6-8/15×4.5-8
Driving brake		Hydraulic-pedal
Paking brake		Mechanical-manual
Dismission
Overall width	mm	1000
Fork size	mm	920x100x35
Minimum right Angle stacking channel width	mm	3250
Min mum urn radius	mm	1800
Capacity
Max driving speed	km/h	9·11
Max Lifting speed	mm/s	240-450
Max lowering speed	mm/s	480/420
Maxmum tractive force	N	6300
Max.grade ability	%	12~15
Drive motor power	kw	4
Hoisting motor power	kw	5
Level voltage/Capacitance	V/Ah	48/320
Drive System	Full AC
electric control system	Curtis
Total weight	kg	2200

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail

Products attachments

product-1180-795

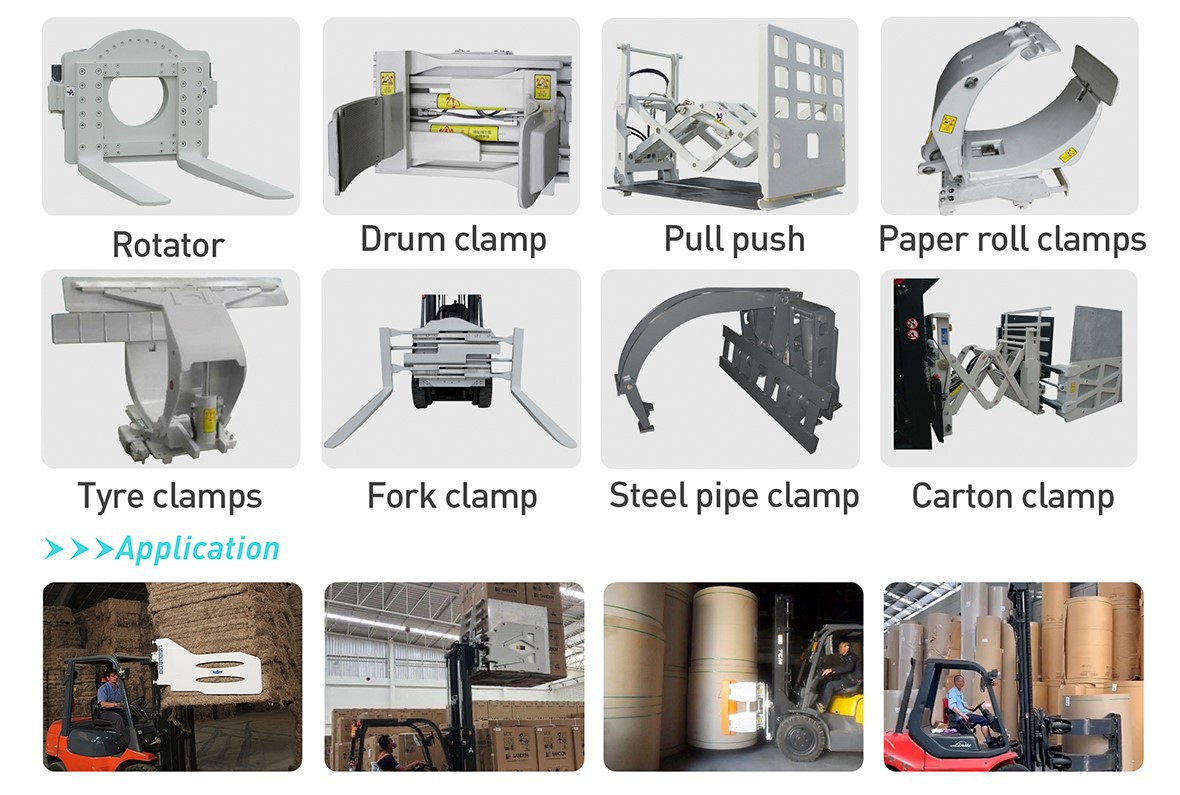

1 ton electric forklifts can be equipped with various attachments to increase their versatility and functionality.

One popular attachment is the paper roll clamp, specifically designed for the safe and efficient handling of paper rolls in the printing, packaging, and paper industries. This attachment securely clamps onto the core of the paper roll, preventing damage to the product during transportation.Other common attachments for 1 ton electric forklifts include:

•Bale clamps for handling compressed materials like cardboard, textiles, or scrap metal.•Carton clamps for picking up and moving stacked cartons without damaging the contents.

•Push-pull attachments for shifting loaded pallets without the need for a pallet itself.

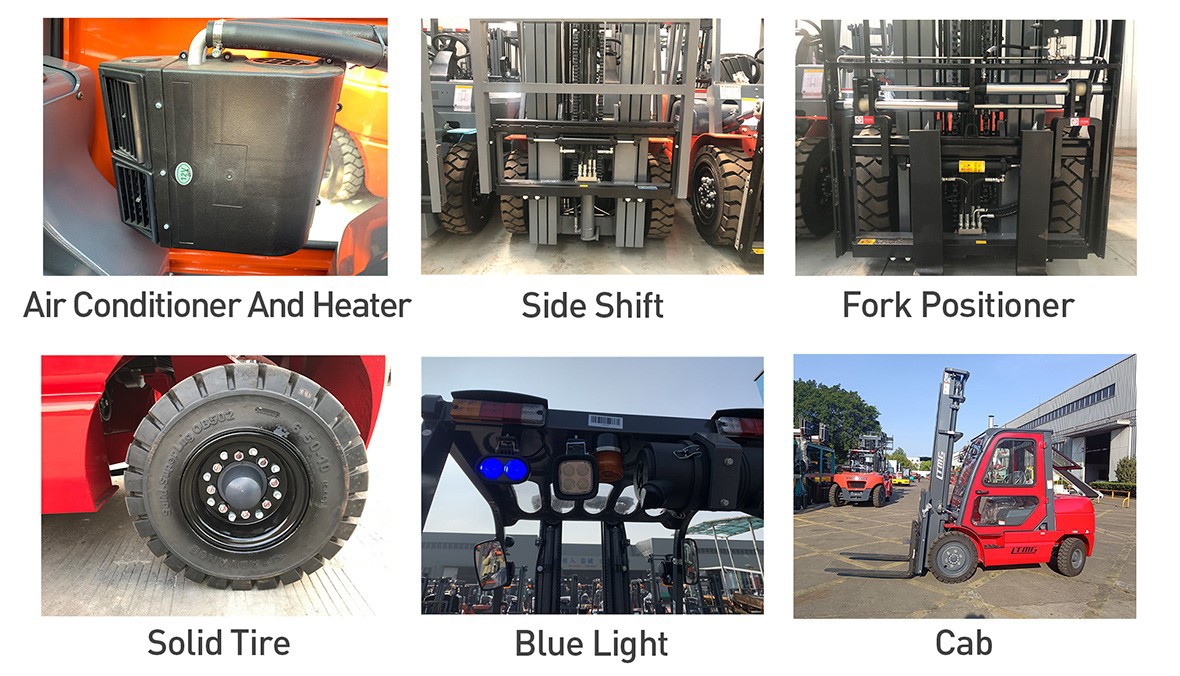

•Side shifters to help operators precisely align loads without having to reposition the forklift.•Rotators, enabling rotation of loads for precise placement or unloading in hard-to-reach positions.

•Fork positioners, automatically adjusting the gap between forks to fit varying pallet sizes.

These attachments significantly augment the capabilities of a 1 ton electric forklift, transforming it into a multi-purpose tool that can adapt to a wide array of tasks within a warehouse or manufacturing setting.

product-1180-676
