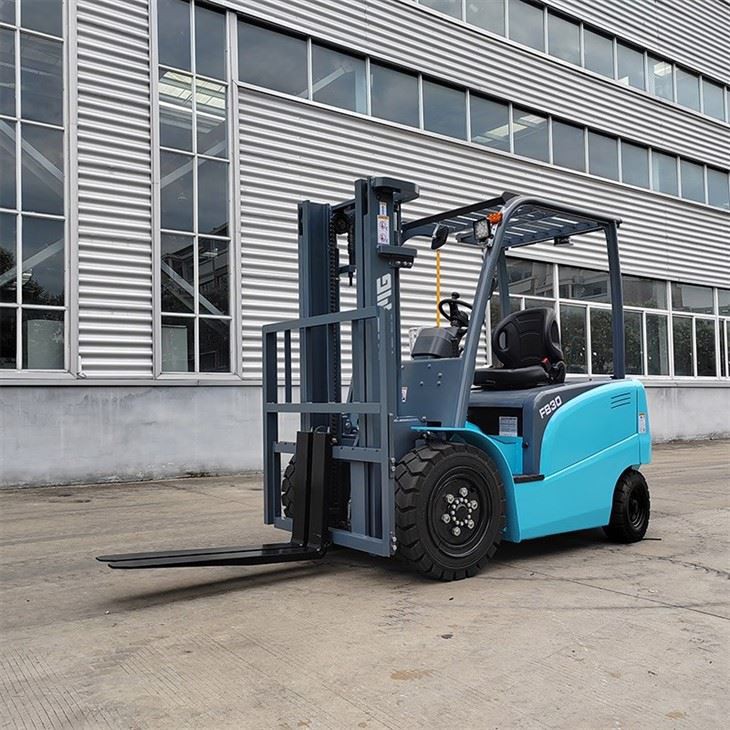

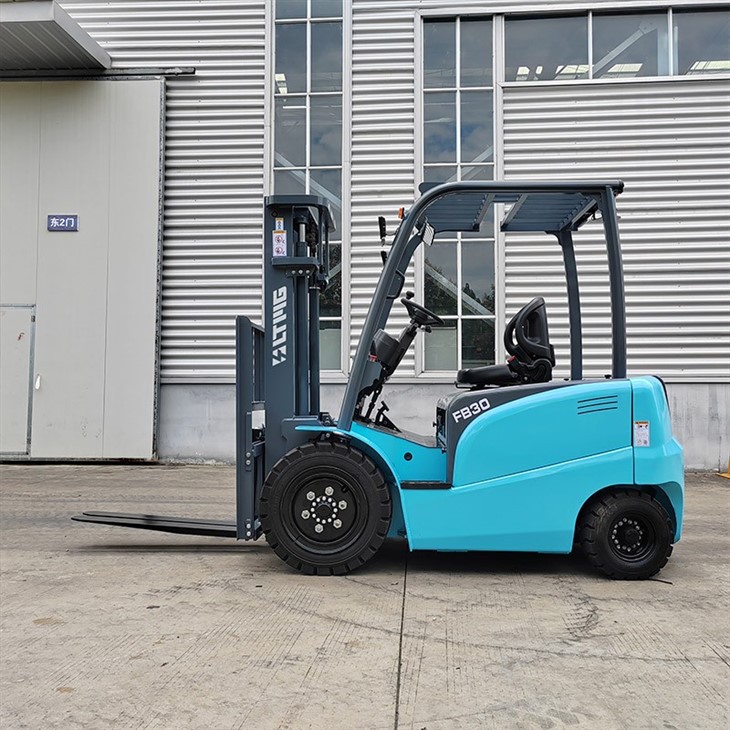

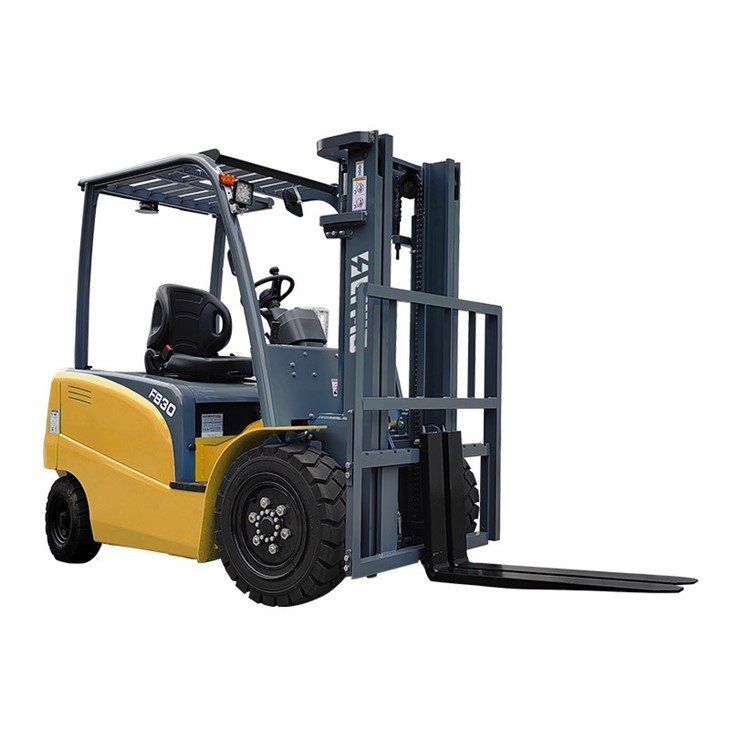

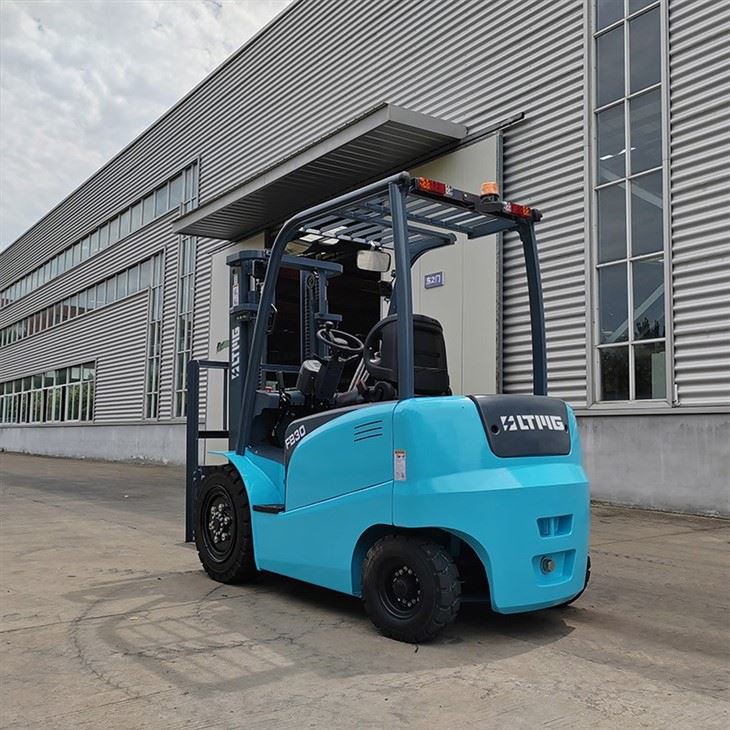

LTMG electrci forklift
electric forklift features
1.Original imported world famous brand controller. After professional adjustment, walking and upgrade control is precision and efficiency, excellent performance. The forklift with regenerative braking, ramp braking , fault self-diagnosis and other functions.
2.Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.
3.Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout, more stable driving.
4.Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.
Common problems and solve methods
Electric forklift trucks may encounter some of the following common problems in the process of use, and the corresponding maintenance methods:
Problem 1: Decrease in battery range Maintenance methods: -Regular charging: avoid deep discharging of the battery and keep the power within the optimal range of 20%-80%. -Correct charging: Use the matching charger and follow the manufacturer's recommended charging procedures to avoid overcharging or undercharging. -Regular battery maintenance: check electrolyte level, keep the battery clean, and conduct regular battery equalization charging and capacity testing.
Problem 2: Abnormal motor operation or overheating Maintenance Methods: -Regularly inspect the motor: ensure that the motor is clean internally, free from interference by foreign objects, and that the bearings are well lubricated. -Monitoring the working current: Avoid prolonged overload operation to prevent the motor from overheating. -Cooling system maintenance: regularly clean the motor fan, heat sink and other cooling devices to ensure the cooling effect.
Problem 3: hydraulic system leakage or insufficient pressure maintenance methods: - Regularly check the hydraulic oil: ensure that the oil quantity is sufficient, the oil quality meets the requirements, and regularly replace the hydraulic oil and filter element. -Explore the leakage point: check the hydraulic pipeline, joints, seals and other parts, repair the leakage in time. -Adjust the hydraulic system: according to the instruction manual, adjust the hydraulic system pressure regularly to ensure the working performance.
similar forklift
About LTMG
| Model | FB30 | |
| Rated Capacity | kg | 3000 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size (L×W×T) | mm | 1070×125×45 |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 |
| Length to fork face of fork (Without fork) | mm | 2610 |
| Overall Width | mm | 1230 |
| Mast Lowered Height | mm | 2110 |
| Mast Extended Height (With backrest) | mm | 4180 |
| Overhead Guard Height | mm | 2250 |
| Turning Radius (outside) | mm | 2350 |
| Front Overhang (Wheel center to fork face) | mm | 480 |
| Tread (Front/Rear) | mm | 1000/980 |
| Ground Clearance (Bottom of mast) | mm | 140 |
| Wheelbase | mm | 1700 |
| Fork Spread (Min./Max) | mm | 250/1100 |
| Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 300 |
| Max. Gradeability | % | 15 |
| Service Weight | kg | 5100 |
| Front Tire×2 | 28×9-15-12PR | |
| Rear Tire×2 | 18×7-8-14PR | |
| Driven Motor | kw | 15 |
| Lift Motor | kw | 12 |
| Battery Standard | V/Ah | 80/500 |
| Controller Manufacturer | CURTIS AC | |
| Operating Pressure for Attachment | Mpa | 18 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
