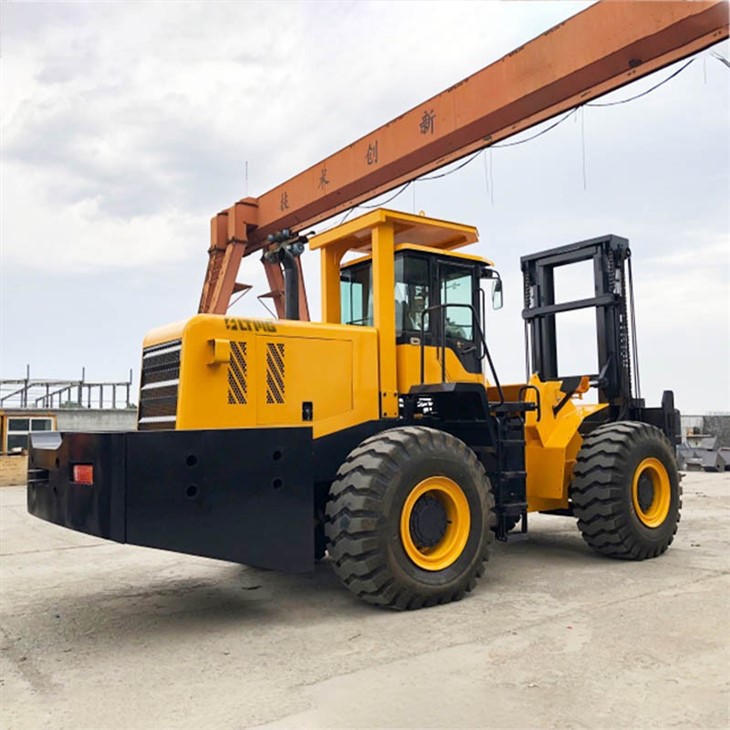

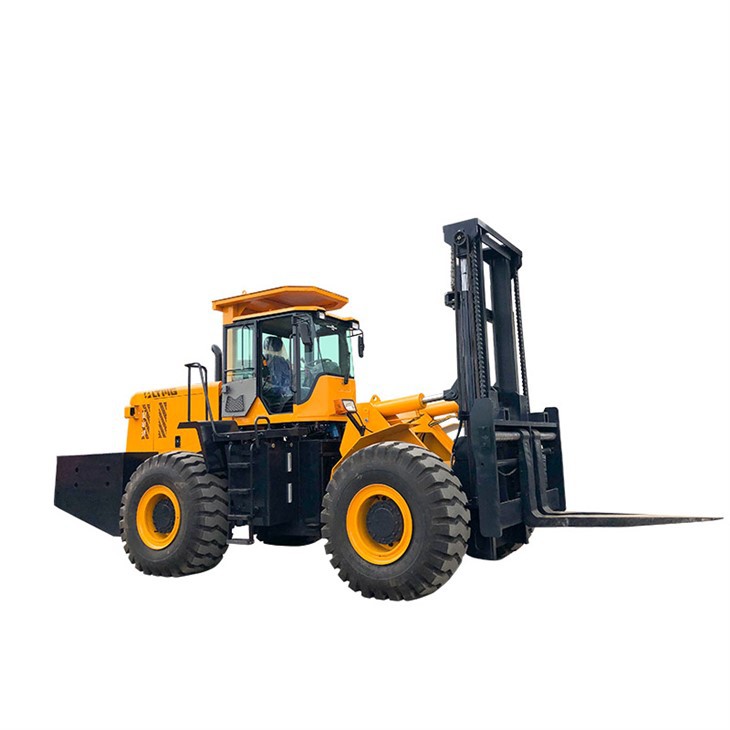

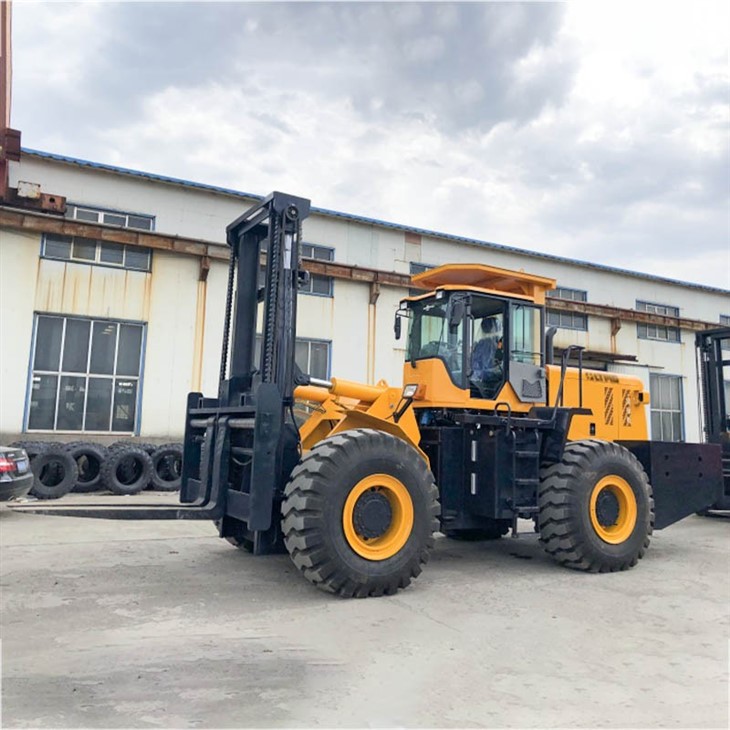

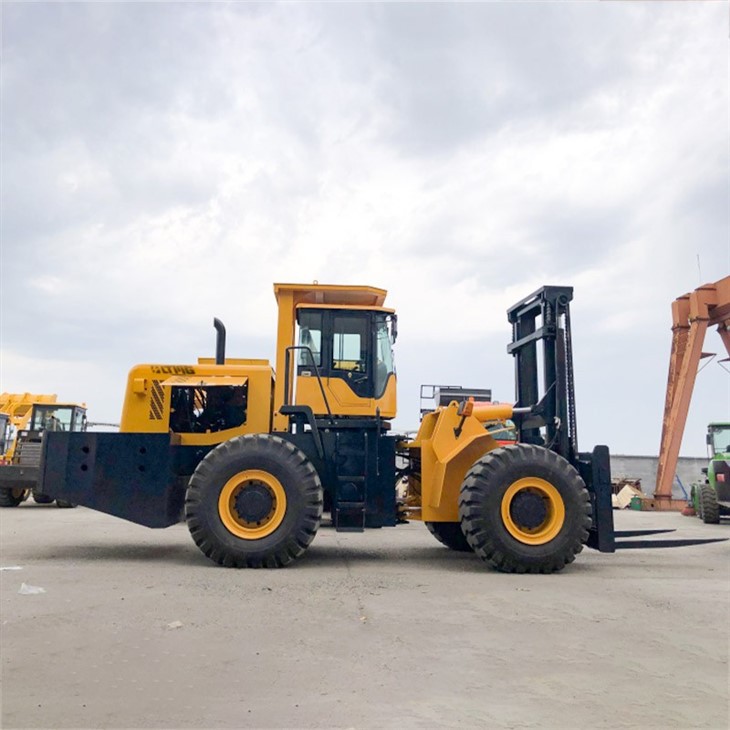

Introducing our Rugged Terrain Forklift with EPA Engine, the go-to choice for tough outdoor applications. This forklift is designed to handle challenging terrain, making it the ideal solution for construction sites, lumberyards, and other outdoor environments.
One of the key features of this forklift is its powerful EPA engine, which delivers excellent performance and fuel efficiency. This engine is designed to meet the stringent emission standards set by the Environmental Protection Agency, ensuring that your operations comply with regulations while also reducing your carbon footprint.
In addition to its robust engine, this forklift boasts a range of other features that make it an excellent choice for rugged terrain applications. Its pneumatic tires provide excellent traction on uneven surfaces, while its sturdy construction and high ground clearance enable it to navigate over rocks, logs, and other obstacles with ease.
The Rugged Terrain Forklift also features a state-of-the-art suspension system which reduces operator fatigue and ensures a smooth ride over rough terrain. This, combined with its comfortable cabin design, makes it a pleasure to operate even during long hours.
Other notable features of this forklift include its intuitive controls, which are ergonomically designed for ease of use, and its wide range of safety features, including a roll cage and seat belts. It also comes equipped with a range of optional extras, including side shifters, fork positioners, and telescopic masts, enabling it to tackle a wide range of material handling tasks with ease.
In short, the Rugged Terrain Forklift with EPA Engine is the perfect choice for businesses looking for a reliable, high-performance forklift that can handle the toughest outdoor applications. Whether you're working on a construction site, a lumberyard, or any other outdoor environment, this forklift is guaranteed to deliver the power, efficiency, and safety you need to get the job done.
Technical parameters
specification |
|||||
General |
Manufacture |
LTMG |
|||
Model |
LTR150 |
||||
Fuel type |
diesel oil |
||||
Rated capacity |
kg |
15000 |
|||
Load center |
mm |
800 |
|||
Dimensions |
Lift height |
mm |
3000 |
||
Free lift height |
mm |
100 |
|||
Fork size |
mm |
2400×200×100 |
|||
Shelf Side Shift Distance |
Left / Right |
mm |
205/205 |
||
Fork spacing adjustment |
Min./Max. |
mm |
280/2320 |
||
Mast tilt angle |
Before / After |
deg |
8/10 |
||
Front overhang |
mm |
1380 |
|||
Overall dismensions |
Length to face of fork |
mm |
9700 |
||
Overall width |
mm |
3040 |
|||
Mast lowered height |
mm |
3350 |
|||
Mast extended height |
mm |
4850 |
|||
Safety rack height |
mm |
3700 |
|||
Turning radius |
mm |
7800 |
|||
Min.right angle aisle width |
mm |
8500 |
|||
Performance |
noload/full load |
Travel speed |
Km/h |
30 |
|
Lifting speed |
mm/sec |
320 |
|||
Max.grade ability |
º |
≥21 |
|||
Max.Pull force(full load) |
KN |
180 |
|||
Self weight |
kg |
24200 |
|||
Chassis |
Tyres |
Front |
2×23.5-25-32PR |
||
Rear |
2×23.5-25-24PR |
||||
Tread |
Front |
mm |
2380 |
||
Rear |
mm |
2380 |
|||
Wheelbase |
mm |
3710 |
|||
Min.Ground clearance (no load/full load) |
Mast |
mm |
450 |
||
Frame |
mm |
500 |
