Name: Portable Self-Propelled Scissor Lift
Brand: LTMG
SKU: 230538942

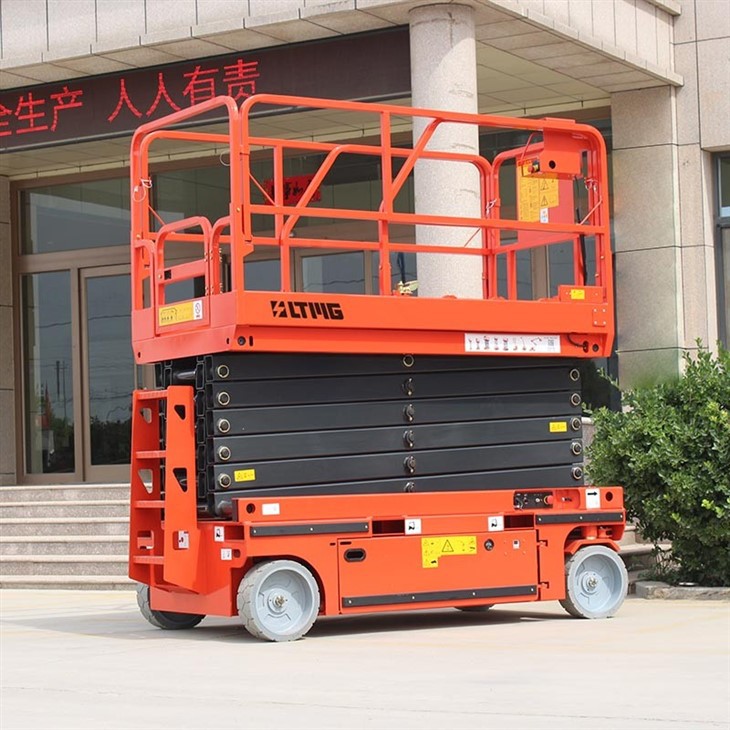

Portable self-propelled scissor lifts are ingenious pieces of machinery that have revolutionized the way workers can access high places. These lifts allow workers to perform tasks at heights that were previously inaccessible, without compromising on safety or efficiency. Portable self-propelled scissor lifts are designed to be lightweight, easy to transport, and compact, which makes them ideal for a wide range of applications, from building maintenance and construction to warehouse inventory management and more.

Equipped with self-locking gate, ensuring safety and prevents accidents. The all-travel feature allows the platform to be moved at any height, increasing its flexibility and maneuverability. The non-marking tires are durable and leave no traces on the floor, while the 4X2 drive system provides maximum traction and stability.

One of the main advantages of portable self-propelled scissor lifts is that they can be easily moved from one location to another, allowing workers to access multiple areas throughout the day. Also, because they are self-propelled, they eliminate the need for manual labor, which makes them more efficient and less time-consuming. This means that workers can get their jobs done faster and more effectively, without compromising on safety.

8m-16m Mobile Scissor Man Lift Platform

mobile scissor lift

scissor lift platform

Technical parameters

Model		LTWP0608	LTWP0810	LTWP1012	LTWP1214	LTWP1416
Platform Floor Height	mm	6000	8000	10000	11800	13800
Working Height	mm	8000	10000	12000	13800	15800
Platform Extension Size	mm	900	900	900	900	900
Overall Length	mm	2450	2450	2450	2450	2450
Overall Width	mm	1150	1150	1150	1150	1350
Overall Height	mm	2180	2310	2420	2550	2750
Platform Size	mm	2290*1150	2290*1150	2290*1150	2290*1150	2790*1270
S.W.L	kg	380	320	320	230	230
S.W.L On Extension	kg	113	113	113	113	100
Grade ability	%	25	25	25	25	25
Turning Radius(Min)	mm	2100	2100	2200	2200	2600
Travel Speed(Stowed)	km/h	3.5	3.5	3.5	3.5	3.5
Travel Speed(Raised)	km/h	0.8	0.8	0.8	0.8	0.8
Ground Clearance(Min)	mm	100	100	100	100	100
Driving Wheels	mm	381*127	381*127	381*127	381*127	381*127
Lifting Motor	V/KM	24/3.0	24/3.0	24/3.0	24/3.0	24/4.5
Maintenance free battery	V/Ah	4*6/225	4*6/225	4*6/240	4*6/240	4*6/300
Integrated Charger	V/A	24/25	24/25	24/25	24/25	24/25
Weight	kg	1945	2175	2468	2830	3575

advantages

portable man lift platform

portable platform lift

scissor platform battery

About LTMG

single man scissor lift factory

FAQ

Q: What safety functions does the mobile scissor manned lifting platform have?

A: Emergency stop: The platform is equipped with an emergency stop button that can be activated in case of an emergency. This button immediately stops all functions of the platform.

Q: What are the typical applications for the Portable Self-Propelled Scissor?

A: This lift platform is commonly used for maintenance and repair work in warehouses, factories, construction sites, and other high-ceilinged areas. It may also be used for stocking or retrieving goods on higher shelves or racks.

Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, and we have builded up our company since 2001, and we have been in the construction machinery and material handling equipment industry for 22 years
