Products features

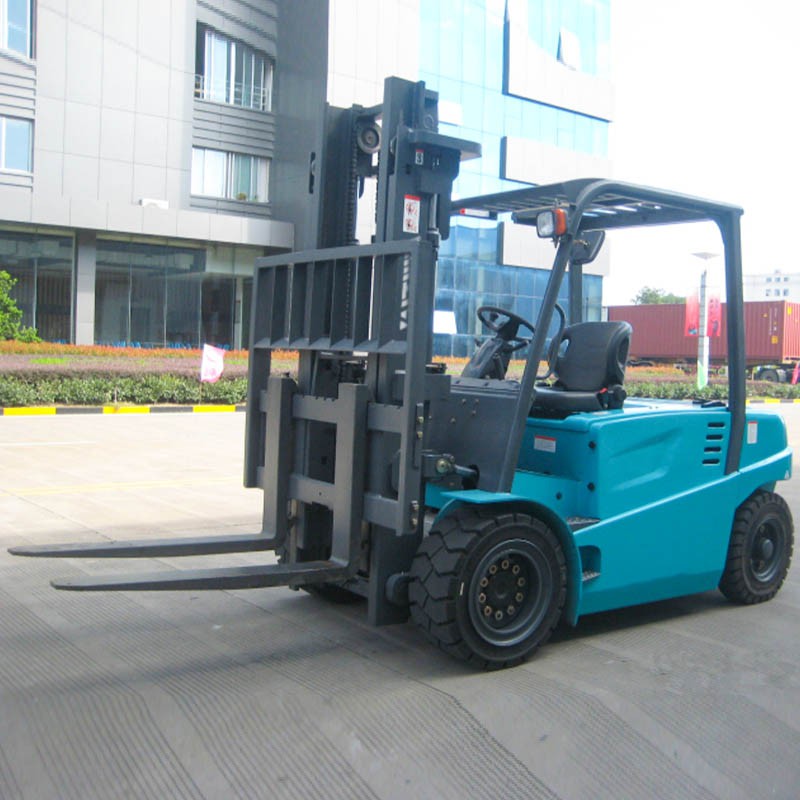

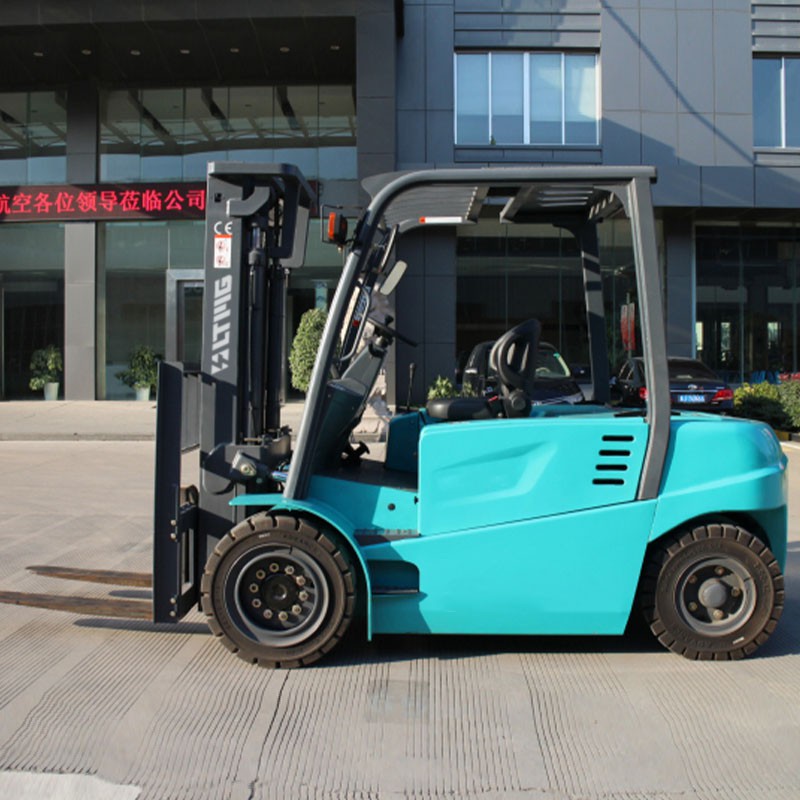

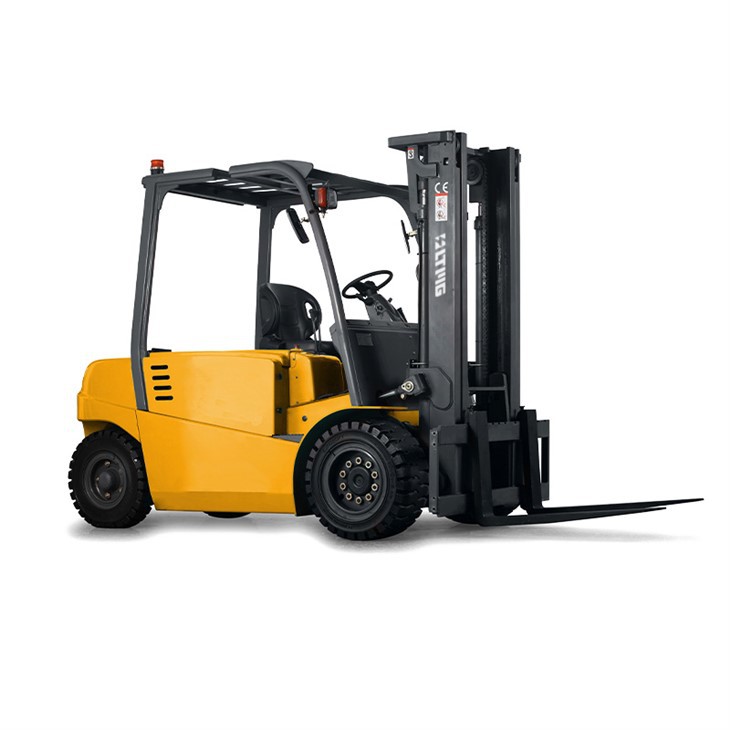

high capacity electric cushion tire forklift truck
Introducing our High Capacity Electric Cushion Tire Forklift Truck, a powerhouse designed for heavy-duty operations with a lifting capacity of 6 tons. Expertly crafted with a high-strength internal combustion balanceweight car body, this electric forklift combines the sturdiness of traditional designs with the efficiency of electric technology, ensuring robust performance and durability in the toughest of industrial environments.
Boasting an impressive driving speed of 20 km/h when fully loaded, this forklift accelerates productivity without compromising safety. Navigate your warehouse or yard swiftly, optimizing material handling time and increasing overall throughput. The agility and responsiveness of this high-capacity forklift make it an invaluable asset for businesses seeking to streamline their logistics operations.
A key feature that sets our electric cushion tire forklift apart is its adaptable power system. Parameters of the upper power system can be customized and fine-tuned to match specific operational requirements, ensuring optimal energy consumption and performance efficiency. This flexibility empowers users to tailor the forklift's performance to their unique needs, be it for intense, continuous operation or lighter, more sporadic tasks.
When it comes to lifting performance, efficiency is paramount. The standard model lifts at a brisk rate of 340mm/s, while the power type ups the ante with an accelerated lift speed of 420mm/s. This rapid yet controlled lifting capability ensures swift and safe handling of loads, enhancing workflow and reducing downtime. Whether stacking pallets high or maneuvering in confined spaces, our forklift responds with precision and power.
The High Capacity Electric Cushion Tire Forklift Truck is not just about brute strength; it's a smart solution that integrates advanced electric technology with ergonomic design and user-centric features. The electric drivetrain delivers clean, silent operation, contributing to a healthier work environment and reducing noise pollution. With low maintenance requirements and cost-effective operation, this forklift represents a sustainable choice for businesses transitioning to greener practices.
In conclusion, our 6-ton High Capacity Electric Cushion Tire Forklift Truck is a testament to innovation in heavy-duty logistics. Combining a robust, high-strength body with adaptable power, rapid lifting speeds, and the advantages of electric power, it's a future-proof investment for businesses seeking to optimize their material handling processes. Experience the perfect blend of power, efficiency, and environmental responsibility with this cutting-edge electric forklift solution.


attachment
OEM service
About LTMG
About LTMG
Model |
FB60 |
|
Rated Capacity |
kg |
6000 |
Load Centre |
mm |
500 |
Lift Height |
mm |
3000 |
Fork Size (L×W×T) |
mm |
1070×150×50 |
Mast Tilt Angle F/R (α°/β°) |
Deg |
6/9 |
Length to face of fork (Without fork) |
mm |
3140 |
Overall Width |
mm |
1600 |
Mast Lowered Height |
mm |
2270 |
Mast Extended Height (With backrest) |
mm |
4165 |
Overhead Guard Height |
mm |
2255 |
Turning Radius (outside) |
mm |
2817 |
Front Overhang (Wheel center to fork face) |
mm |
579 |
Tread (Front/Rear) |
mm |
1280/1190 |
Ground Clearance (Bottom of mast) |
mm |
170 |
Wheelbase |
mm |
2000 |
Fork Spread (Min./Max) |
mm |
300/1380 |
Travel Speed |
km/h |
14 |
Lifting Speed (Full load) |
mm/s |
280 |
Max. Gradeability |
% |
15 |
Service Weight |
kg |
7970 |
Front Tire |
2.8×12.5-15 |
|
Rear Tire |
7.00-12-12PR |
|
Driven Motor |
kw |
11×2 |
Lift Motor |
kw |
12×2 |
Battery Standard |
V/Ah |
80/700 |
Controller Manufacturer |
CURTIS AC |
|
Operating Pressure for Attachment |
Mpa |
18 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
