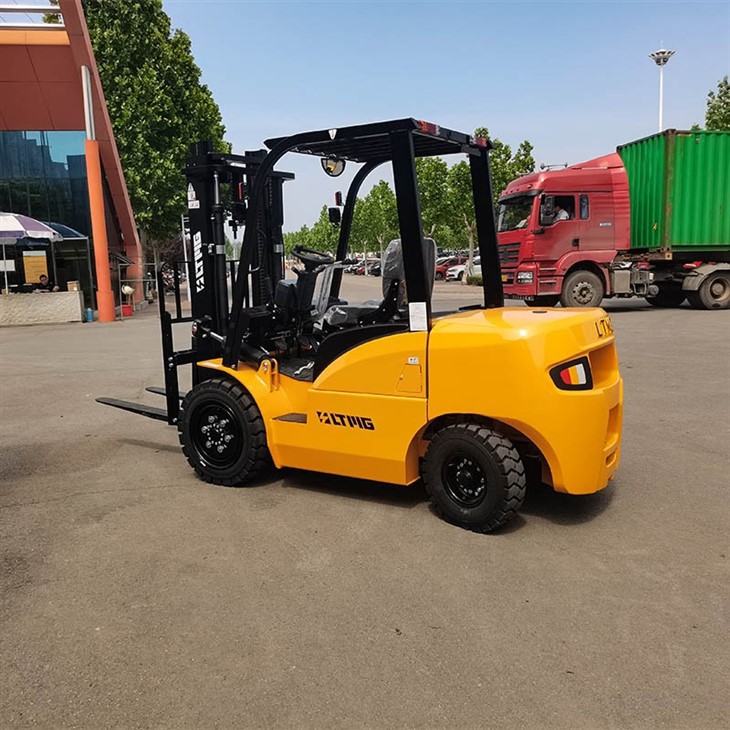

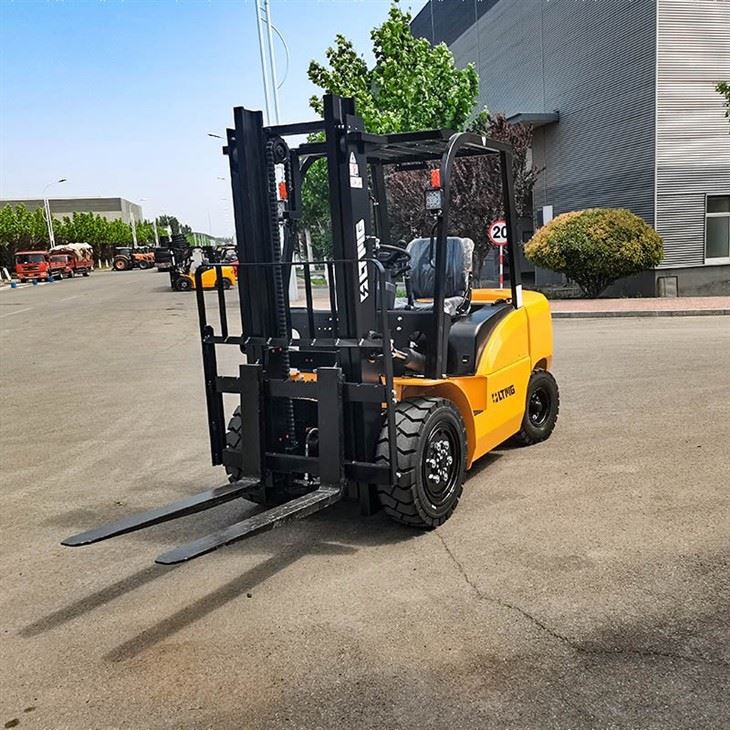

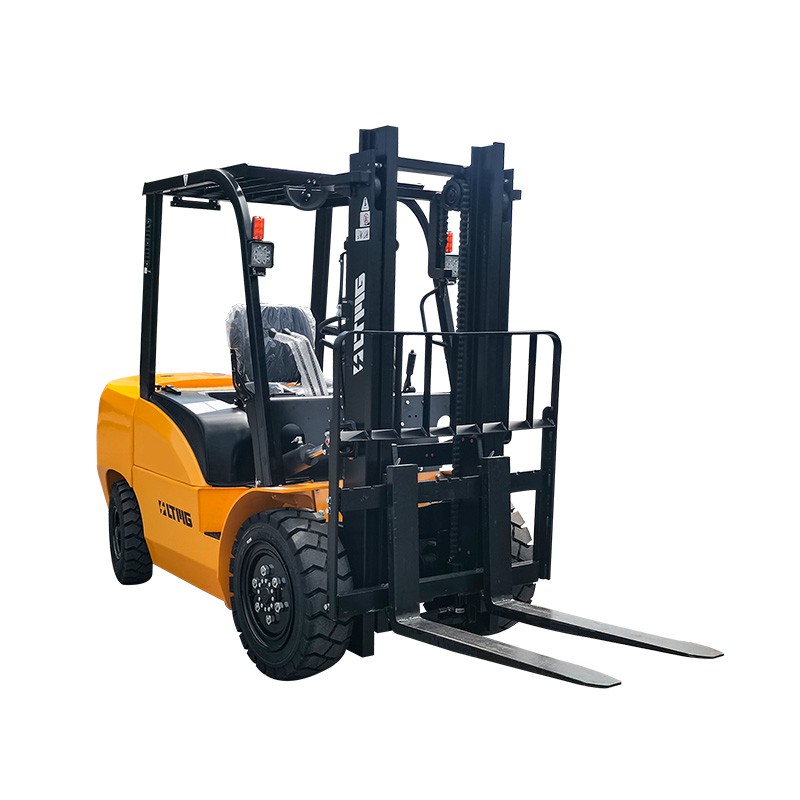

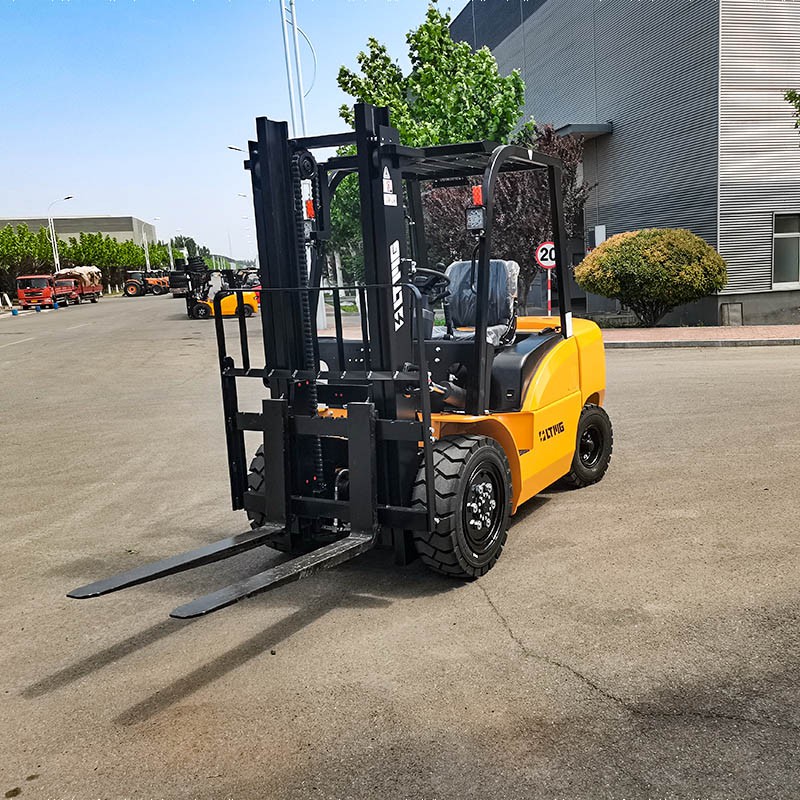

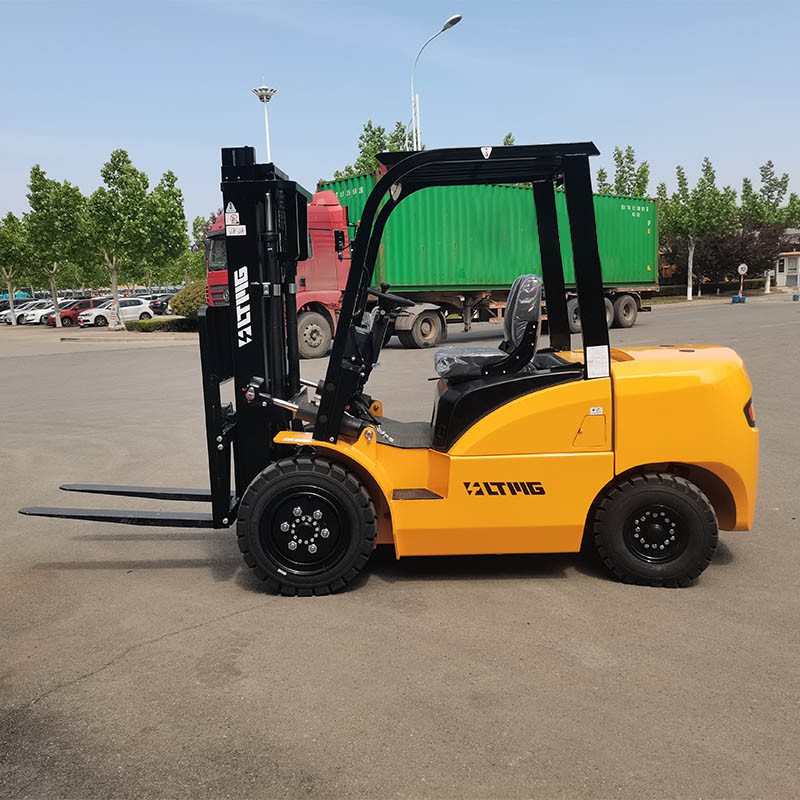

Products Appearance
Advantage
The whole forklift uses LED light source, energy saving, better performance. Using Large Angle hood, easy to remove the left and right hood side panels, maintenance protection convenient. Using iron air filter, increase the air intake,more motivation.
Adopt cast unibody steering bridge, bearing at main shaft adopts large circle cone bearing, and car body contact with buffer block, greatly improve the rotation the reliability of the bridge.
Hood opening Angle is large, easy to remove the left and right hood side panels, maintenance easy to maintain.
Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.
Products parameter
| 1 | Model | Unit | FD38 | |||
| 2 | Power type | Diesel | ||||
| 3 | Rated capacity | kg | 3800 | |||
| 4 | Load center | mm | 500 | |||
| 5 | Operator type | Drive in seat | ||||
| SIZE | ||||||
| 6 | Max. lift height of mast with load-backrest | mm | 4262 | |||
| 7 | Max.lift height of fork(standard) | mm | 3000 | |||
| 8 | Height of mast (standard) | mm | 2180 | |||
| 9 | Free lift height(standard) | mm | 170 | |||
| 10 | Height of load-backrest | mm | 1235 | |||
| 11 | Distance from seat to overhead guard | mm | 1000 | |||
| 12 | Overhead guard height | mm | 2090 | |||
| 13 | Overall length without fork | mm | 2693 | |||
| 14 | Front overhang | mm | 498 | |||
| 15 | Rear overhang | mm | 495 | |||
| 16 | Wheel base | mm | 1700 | |||
| 17 | The height of traction pin | mm | 310 | |||
| 18 | Min. ground clearance | mm | 135 | |||
| 19 | Overall width | mm | 1225 | |||
| 20 | The distance between forks | mm | 1060/250 | |||
| 21 | Tread(front /rear) | mm | 1000/970 | |||
| 22 | Min. turning radius(outside) | mm | 2420 | |||
| 23 | Min. turning radius(inside) | mm | 200 | |||
| 24 | Min. intersecting aisle | mm | 2400 | |||
| 25 | Mast tilt angle | deg | 6°/12° | |||
| 26 | Fork size | mm | 1070X125X50 | |||
| PERFORMANCE | ||||||
| 27 | Speeds | Max.drive speeds(with/withoutfull load) | km/h | 17/19 | ||
| 28 | Lifting speeds (with /without full load) | mm/s | 310/370 | |||
| 29 | Lowering speeds(with /without full load) | mm/s | 330/400 | |||
| 30 | Max.tractive force(with/without full load) | kn | 20/16.3 | 20/16.3 | ||
| 31 | Max.grade ability (with/without full load) | % | 15/20 | 16.5/20 | ||
| WEIGHT | ||||||
| 32 | Total weight | kg | 4850 | |||
| 33 | Weight distribution full load (front/ rear) | kg | 7380/820 | |||
| 34 | Weight distribution zero load(front / rear) | kg | 1830/3020 | |||
| WHEELS AND TYRES | ||||||
| 35 | Quantity of wheels | 2X/2 | ||||
| 36 | Type of tyres | Penumatic tyres | ||||
| 37 | Tyres | Front | 28X9-15-12PR | |||
| 38 | Rear | 6.50-10-10PR | ||||

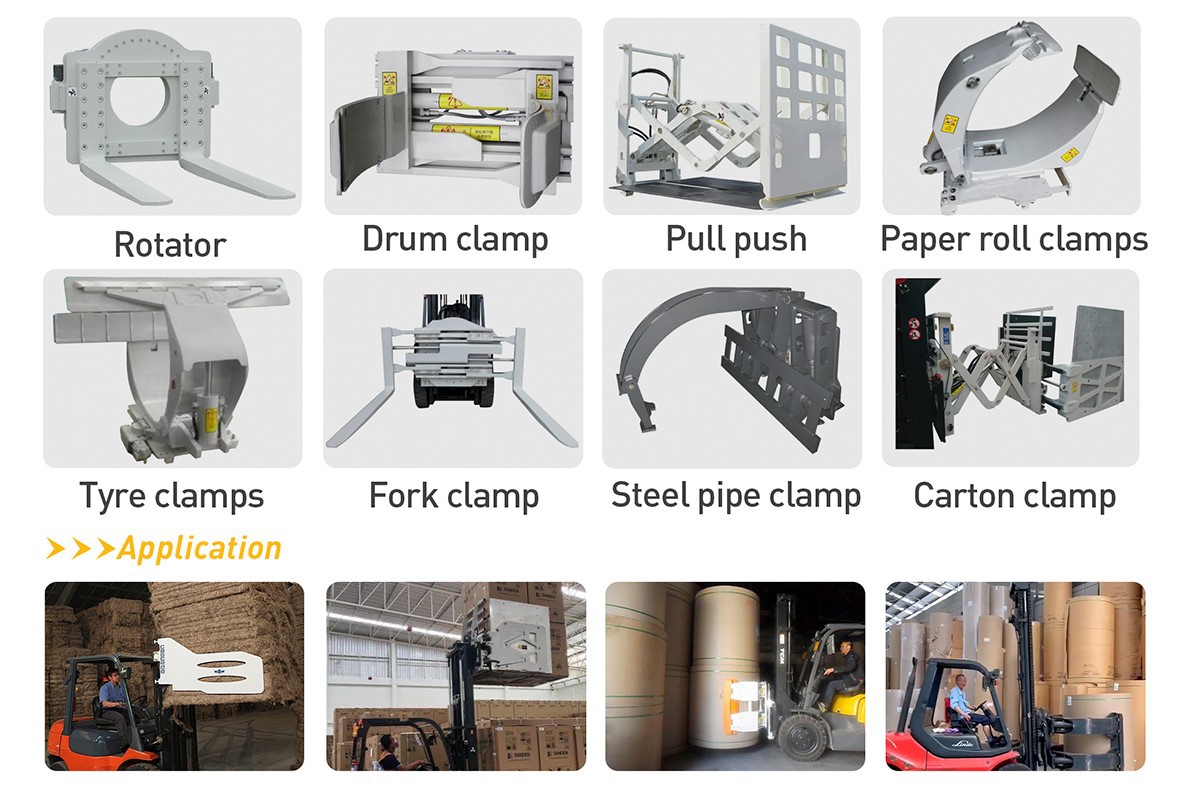

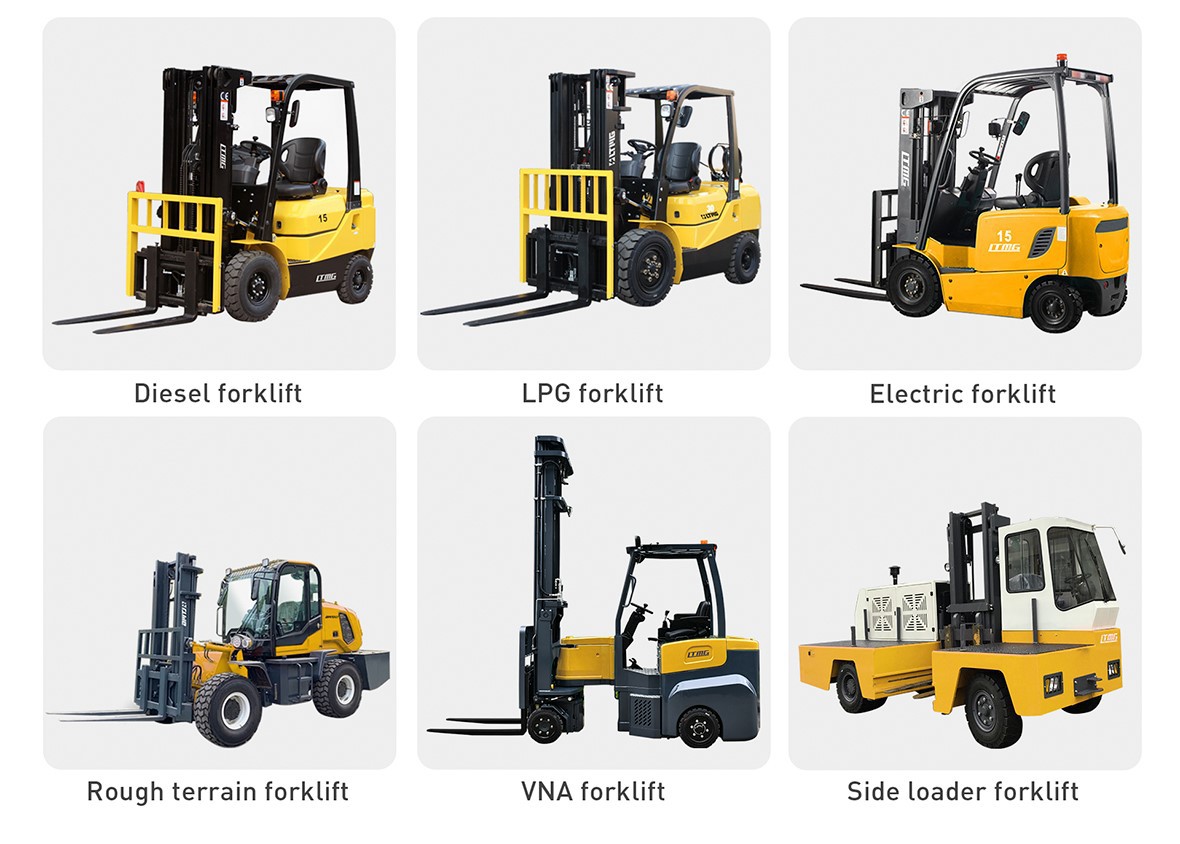

Other Products & Options
