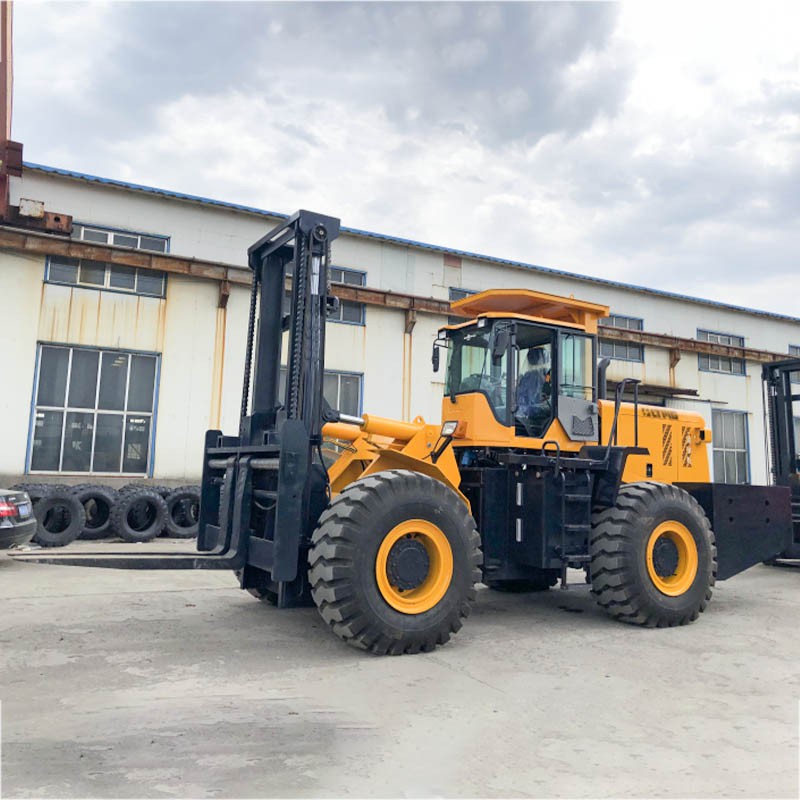

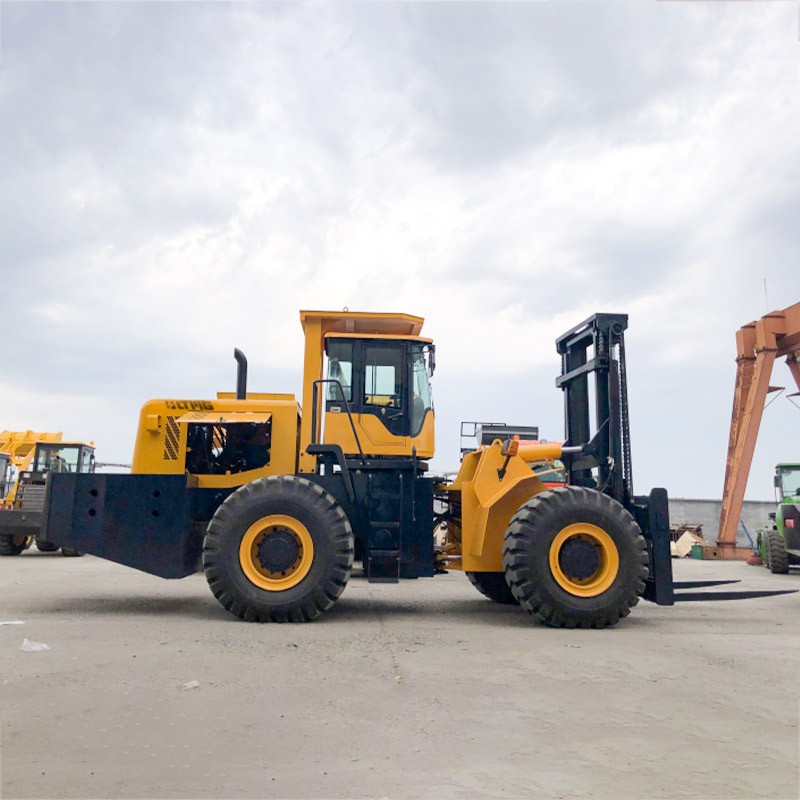

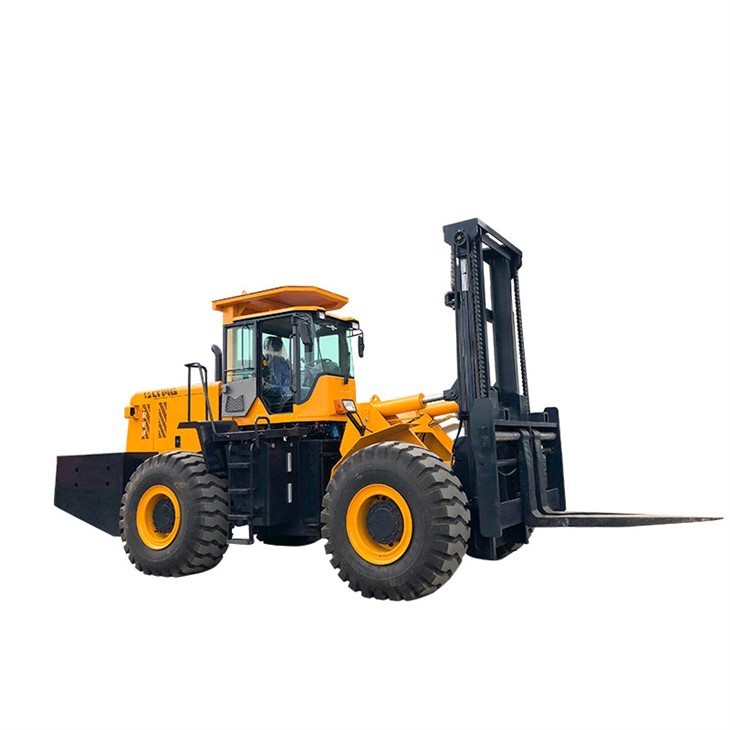

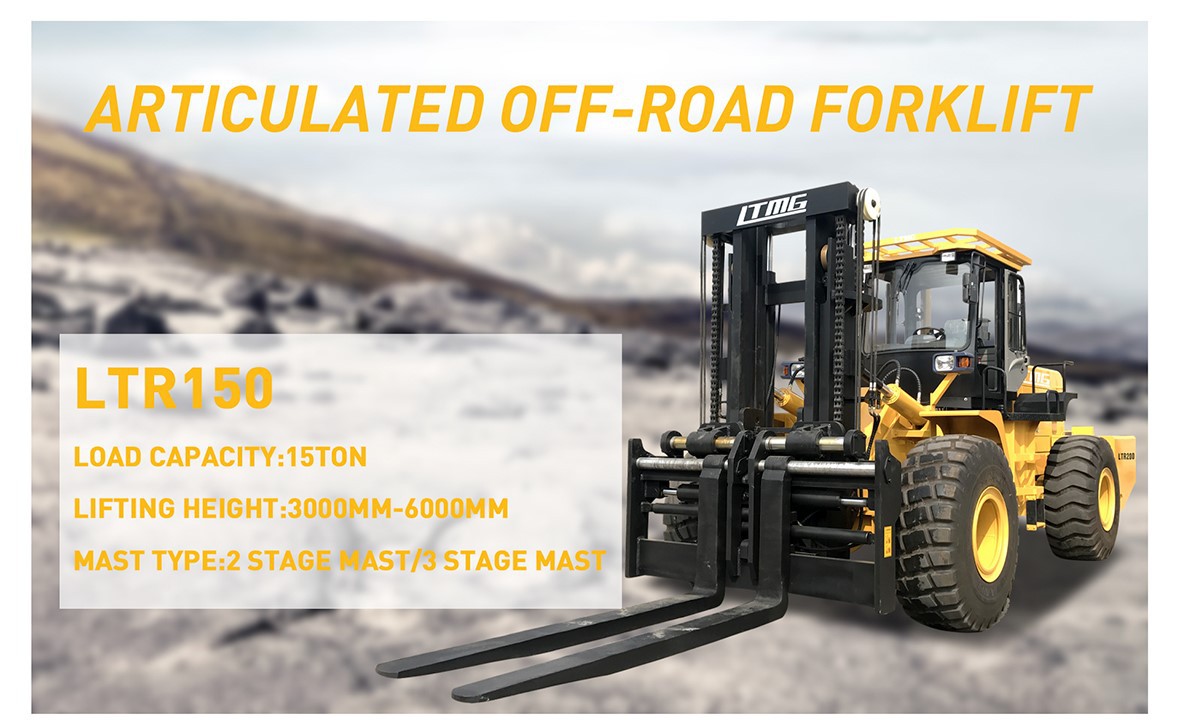

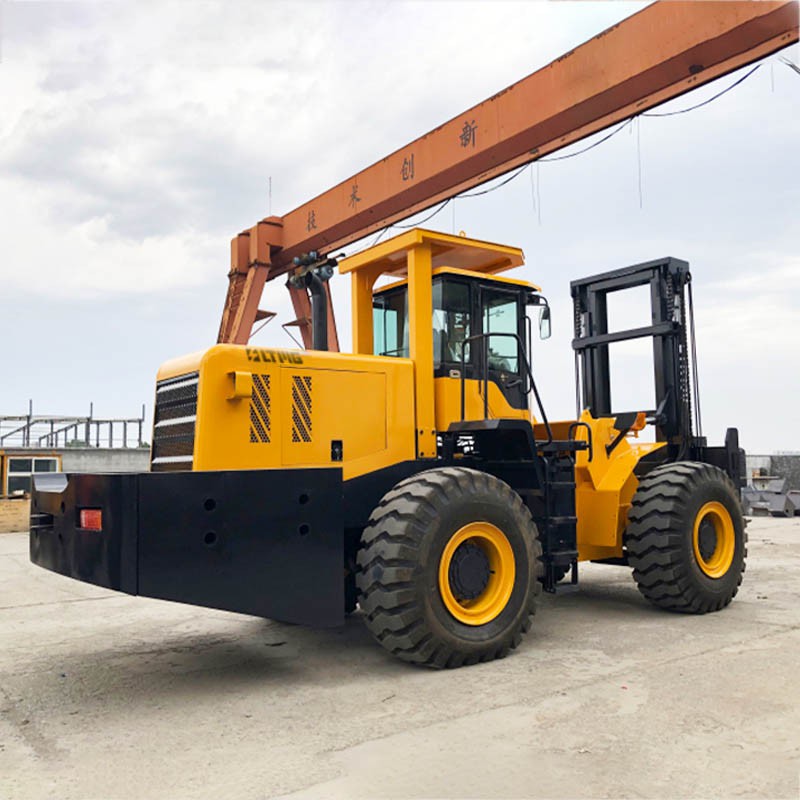

The 15 Ton Rough Terrain AWD Articulated Forklift is equipped with cutting-edge power and transmission systems, incorporating superior components and a high-quality engine. Its formidable power, easy maintenance, strong longitudinal stability, and sturdy construction make it a benchmark of excellence in both quality and durability.
Crafted with precision and manufactured using state-of-the-art technology, this all terrain fork truck is engineered for optimal performance. Its power and transmission systems benefit from advanced manufacturing techniques, ensuring a reliable and efficient operation. The high-quality engine provides the necessary strength to tackle heavy loads with ease, while its user-friendly maintenance features contribute to long-term operational efficiency.
Designed to excel in rugged terrains, even under the most adverse conditions, this rugged terrain forklift is perfectly suited for operations in soft soil, pastures, mining areas, and various uneven surfaces. The terrain forklift emerges as the ideal equipment for land surveying, construction sites, and mining companies, offering unparalleled adaptability and performance.
The exquisite craftsmanship and robust box-type frame enhance the 15 Ton Rough Terrain AWD Articulated Forklift's lateral and longitudinal stability, ensuring a smooth and controlled operation. The entire vehicle undergoes a three-dimensional finite element analysis, resulting in a superior structure that is both reliable and of exceptional quality. Key welded components undergo non-destructive testing, ensuring their integrity and facilitating effective reassembly.
Technical parameters
specification |
|||||
General |
Manufacture |
LTMG |
|||
Model |
LTR150 |
||||
Fuel type |
diesel oil |
||||
Rated capacity |
kg |
15000 |
|||
Load center |
mm |
800 |
|||
Dimensions |
Lift height |
mm |
3000 |
||
Free lift height |
mm |
100 |
|||
Fork size |
mm |
2400×200×100 |
|||
Shelf Side Shift Distance |
Left / Right |
mm |
205/205 |
||
Fork spacing adjustment |
Min./Max. |
mm |
280/2320 |
||
Mast tilt angle |
Before / After |
deg |
8/10 |
||
Front overhang |
mm |
1380 |
|||
Overall dismensions |
Length to face of fork |
mm |
9700 |
||
Overall width |
mm |
3040 |
|||
Mast lowered height |
mm |
3350 |
|||
Mast extended height |
mm |
4850 |
|||
Safety rack height |
mm |
3700 |
|||
Turning radius |
mm |
7800 |
|||
Min.right angle aisle width |
mm |
8500 |
|||
Performance |
noload/full load |
Travel speed |
Km/h |
30 |
|
Lifting speed |
mm/sec |
320 |
|||
Max.grade ability |
º |
≥21 |
|||
Max.Pull force(full load) |
KN |
180 |
|||
Self weight |
kg |
24200 |
|||
Chassis |
Tyres |
Front |
2×23.5-25-32PR |
||
Rear |
2×23.5-25-24PR |
||||
Tread |
Front |
mm |
2380 |
||
Rear |
mm |
2380 |
|||
Wheelbase |
mm |
3710 |
|||
Min.Ground clearance (no load/full load) |
Mast |
mm |
450 |
||
Frame |
mm |
500 |
|||
Power Unit and Control |
Battery |
V/AH |
24/100×2 |
||
Engine |
Model |
6CTA8.3-C240 |
|||
Manufacture |
Cummins |
||||
Rated output |
Kw/rpm |
179/2200 |
|||
Rated torque |
N.m/rpm |
1028 |
|||
Fuel tank capacity |
L |
220 |
|||
Transmissions |
Type |
Hydraulic |
|||
Shift |
Front/rear |
2/1 |
product detail

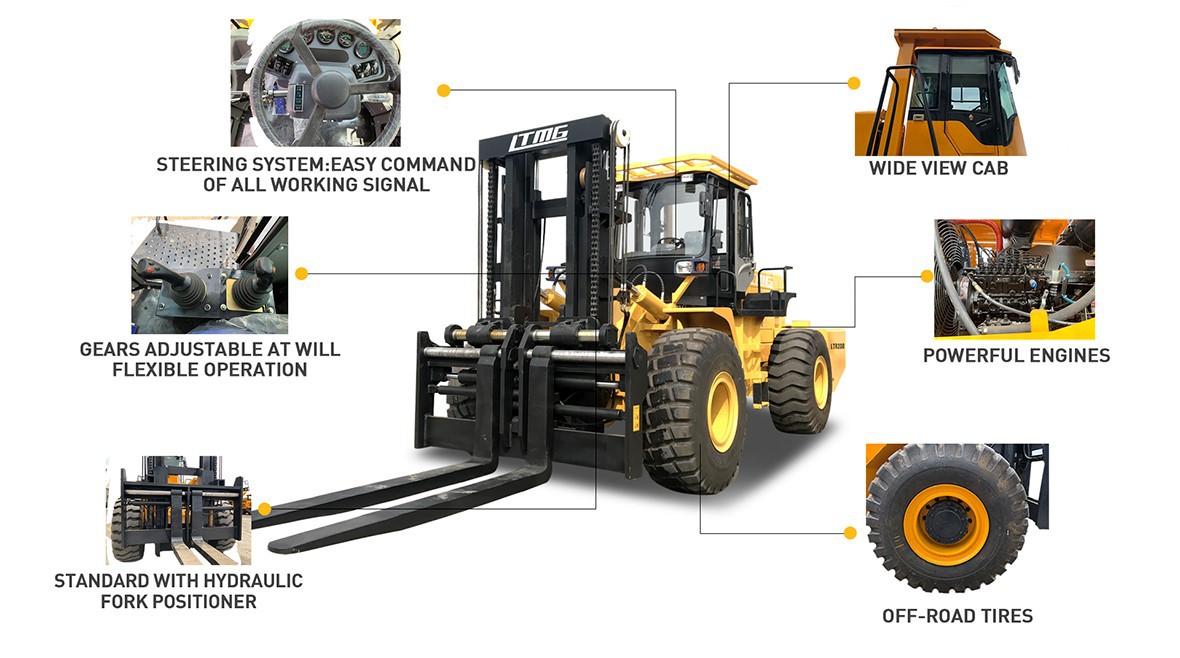

About LTR150
