electric forklift configuration

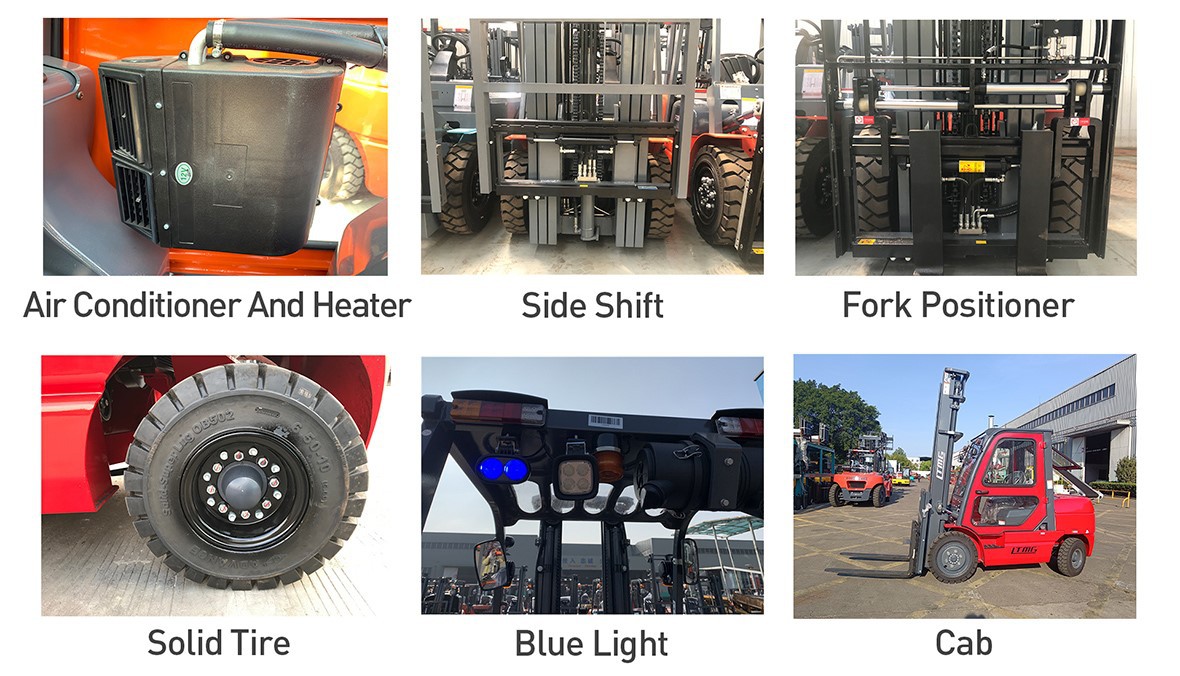

Air Conditioner: An air conditioner is an optional feature that can greatly enhance the comfort of the operator, especially in hot climates or during extended periods of operation. It provides a cool and refreshing environment inside the cabin, reducing fatigue and increasing productivity. The air conditioning system is designed to be energy-efficient, ensuring it does not significantly impact the forklift's battery life.
Side Shifter: The side shifter is a valuable addition to an electric forklift, offering enhanced maneuverability and versatility. It allows the operator to move the load laterally while keeping the forklift in a fixed position. This feature is particularly useful in tight spaces or when precise placement of loads is required, such as in warehouse operations.
Fork Positioner: A fork positioner, also known as a carriage positioner, is an optional accessory that enables the operator to adjust the position of the forks or the carriage without leaving the seat. This can be crucial for optimizing load handling, ensuring that the load is centered on the forks for safe and efficient transport. It also helps in reducing the time spent on manual adjustments, thus improving overall operational efficiency.
Solid Tire: Solid tires are a durable and maintenance-free alternative to pneumatic tires. They are designed to withstand harsh conditions and heavy loads without the risk of punctures or flats. Solid tires provide a smooth ride and excellent traction, making them ideal for indoor and outdoor applications. They also eliminate the need for regular tire pressure checks and reduce downtime associated with tire maintenance.

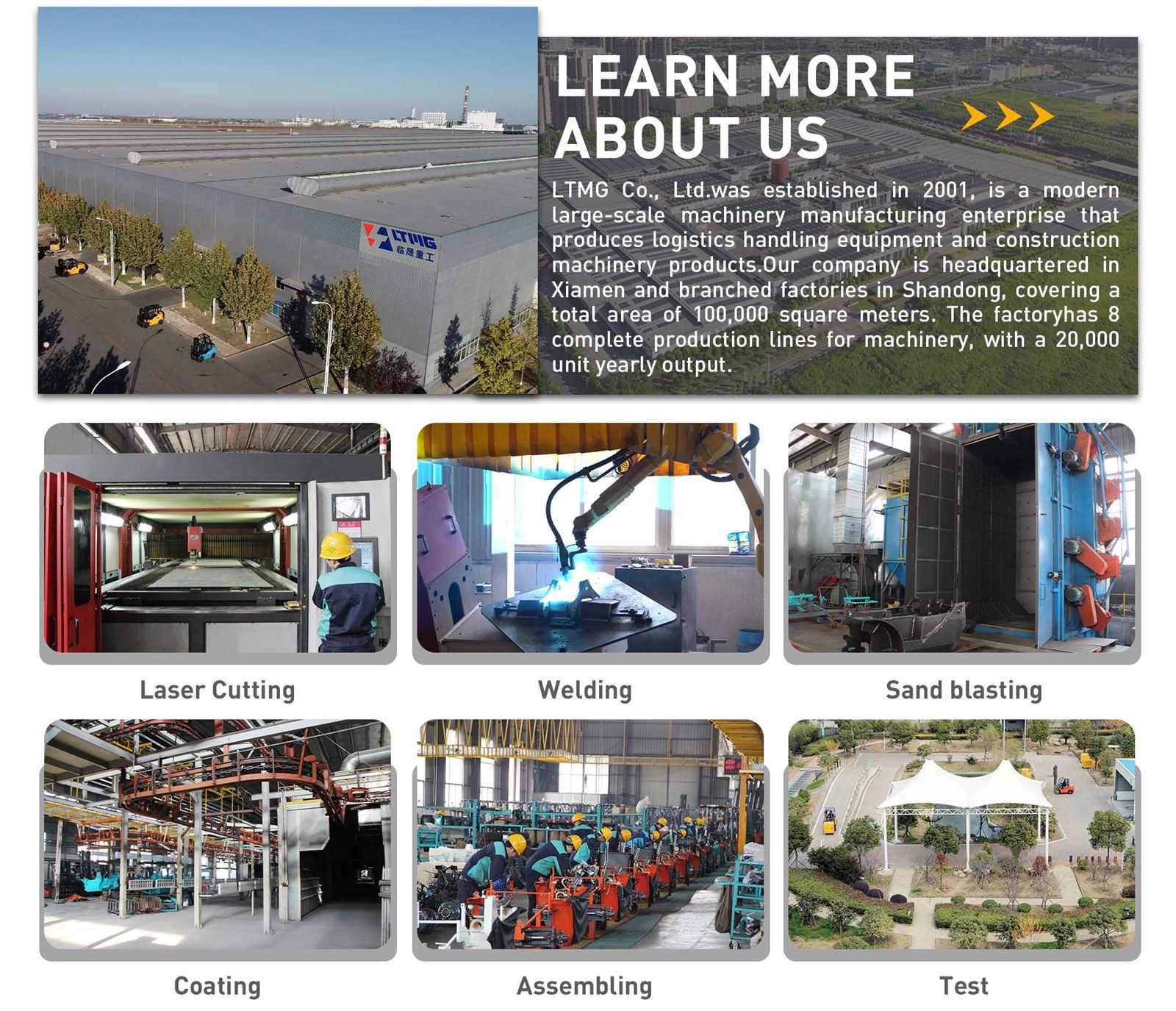

about LTMG
LTMG Co..Ltd.was established in 2001,is a modern large-scale machinery manufacturing enterprise that produces logistics handling equipment and
construction machinery products.0ur company is headquartered in Xiamen and branched factories in Shandong. covering a total area of 100,000 square meters.The factoryhas 8 complete production lines for machinery, with a 20,000 unit yearly output.
Common problems and solve methods
Battery Drainage Concerns
Challenge: The battery could fail to retain its charge, or the forklift might not function for the anticipated time on a single charge.
Resolution: Examine the battery for visible harm or leakage. Make sure to adhere to the correct charging procedure, including the right duration for charging. Keep the battery terminals clean regularly to preserve efficient electrical connections. If the battery is outdated, it might be necessary to replace it.
Excessive Heat in the Motor
Challenge: The motor might become excessively hot, which could result in reduced functionality and possible harm.
Resolution: Look into the motor for any obstructions in the cooling mechanism. Verify that the motor's air vents are unobstructed and that the cooling fans are operating as they should. Overloading the forklift can lead to overheating of the motor, so always follow the recommended load limits.
Hydraulic Fluid Escape
Challenge: Escaping fluid can result in a reduction of hydraulic liquid, impacting the forklift's lifting and tilting capabilities.
Resolution: Routinely check the hydraulic system for indications of leakage. Swiftly replace any damaged gaskets or hoses. Make sure the hydraulic fluid is clean and at the proper level. If the issue continues, a professional assessment might be required to pinpoint the source of the leak.
| Model | FB100 | |
| Rated capacity | kg | 10000 |
| Load center distance | mm | 600 |
| Power type | Lithium Battery | |
| Wheel base | mm | 2800 |
| Wheel number(front/rear) | 4×/2 | |
| Front tread | mm | 1600 |
| Rear tread | mm | 1722 |
| Tyre(front) | 9.00-20-16PR | |
| Tyre(rear) | 9.00-20-16PR | |
| Front overhang | mm | 720 |
| Mast tilting angle,front/rear | 6/12 | |
| Height with mast retraction | mm | 2840 |
| Free lifting height | mm | 200 |
| Max.lifting height | mm | 3000 |
| Max.height after lifting | mm | 4320 |
| Overall guard height | mm | 2560 |
| Fork size:Length x Width x Thickness | mm | 1220×150×85 |
| Overall length(fork excluded) | mm | 4260 |
| Overall width | mm | 2240 |
| Turning radjus | mm | 4080 |
| Ground clearance of mast | mm | 235 |
| Ground clearance of wheel base center(loaded) | mm | 245 |
| Right angle stacking aisle width (pallet 1000×1000mm,clearance 200mm | mm | 5750 |
Right angle stacking aisle width (pallet 1200×1200mm,clearance 200mm |
mm | 5950 |
| Lateral fork adjustment Max./Min | mm | 2200-300 |
| Travelling speed (loaded/unloaded) | km/h | 13/15 |
| Lifting speed (loaded/unloaded | mm/s | 280/300 |
| Lowering speed | mm/s | 450 |
| Gradeability (loaded) | % | 14 |
| Self weight | Kg | 95000 |
| Battery voltage /capacity | V/Ah | 76.8/1080 |
| Battery weight | Kg | 720 |
| Driving motor power-60 minutes | Kw | 30 |
| Lifting motor power(S315%) | Kw | 2X26 |
| Driving motor control mode | MOSFET/AC | |
| Lifting motor control mode | MOSFET/AC | |
| Service brake/parking brake | Hydraulic /Mechanical | |
| Hydraulic system working pressure | Mpa | 20.0 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
