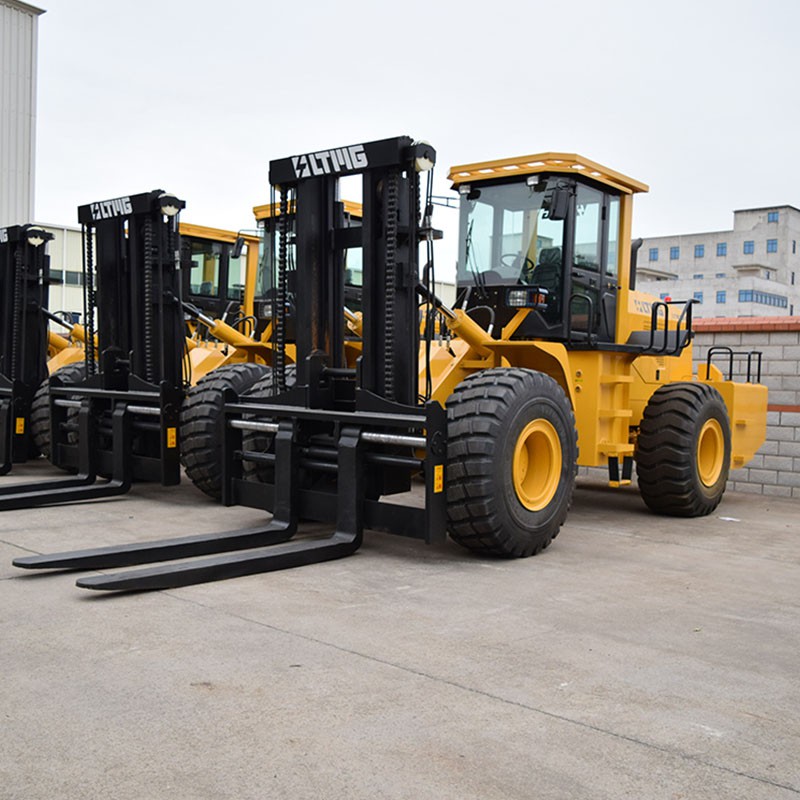

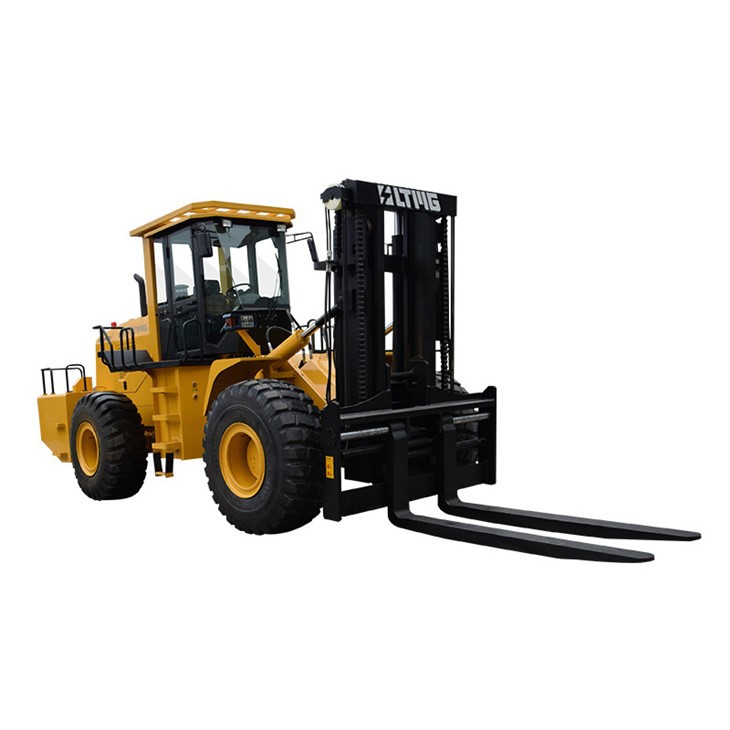

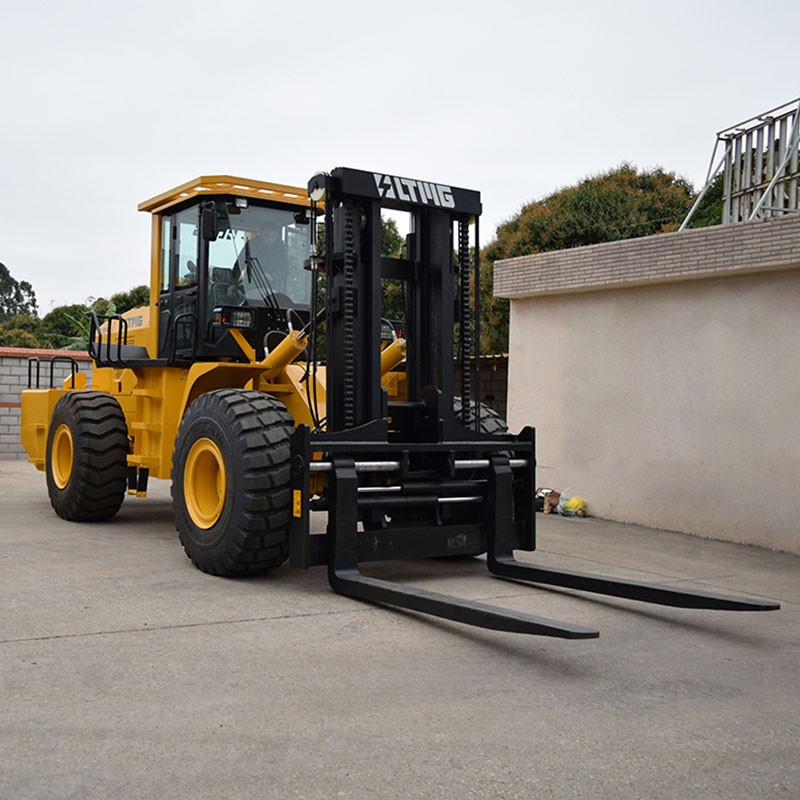

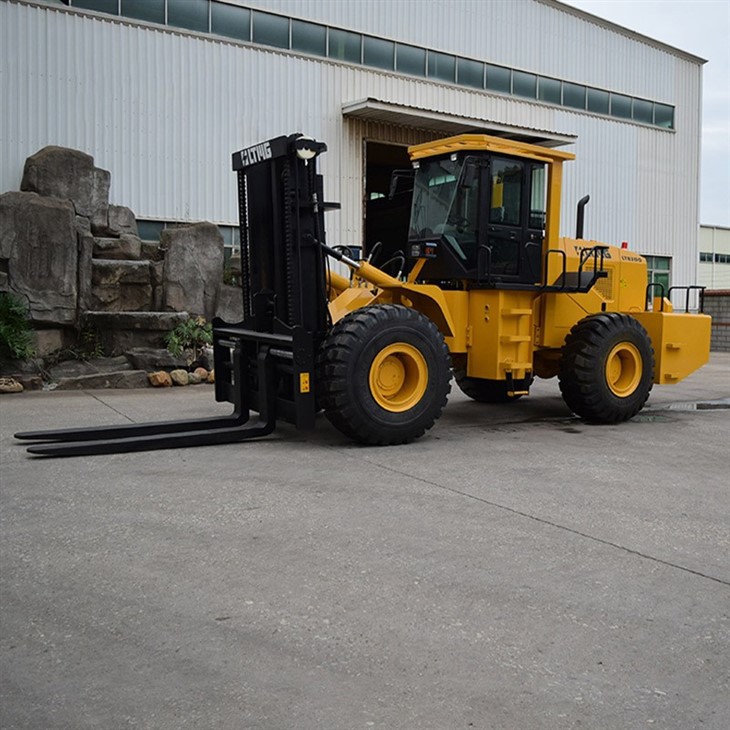

Products Appearance
Why choose our company?
LTMG stands as a prominent producer of material handling machinery, encompassing forklifts, reach stackers, and diverse logistic solutions. Boasting a two-decade-long tenure in the sector, LTMG has garnered acclaim for crafting top-notch, dependable equipment tailored to a broad array of application scenarios. Our offerings incorporate cutting-edge technology and are engineered to withstand the rigors of arduous material handling tasks. Driven by a commitment to innovation, we furnish our clientele with transformative solutions that drive efficiency, productivity, and safety enhancements in their operations. LTMG is unwavering in its dedication to customer contentment, consistently striving to deliver premium service and worldwide support.
Product Parameters
|
specification |
||||||
|
General |
Manufacture |
LTMG |
||||
|
Model |
LTR150/LTR200 |
|||||
|
Fuel type |
diesel oil |
|||||
|
Rated capacity |
kg |
15000/20000 |
||||
|
Load center |
mm |
800 |
||||
|
Dimensions |
Lift height |
mm |
3000 |
|||
|
Free lift height |
mm |
100 |
||||
|
Fork size |
mm |
2400×200×100 |
||||
|
Shelf Side Shift Distance |
Left / Right |
mm |
205/205 |
|||
|
Fork spacing adjustment |
Min./Max. |
mm |
280/2320 |
|||
|
Mast tilt angle |
Before / After |
deg |
8/10 |
|||
|
Front overhang |
mm |
1380 |
||||
|
Overall dismensions |
Length to face of fork |
mm |
9700 |
|||
|
Overall width |
mm |
3040 |
||||
|
Mast lowered height |
mm |
3350 |
||||
|
Mast extended height |
mm |
4850 |
||||
|
Safety rack height |
mm |
3700 |
||||
|
Turning radius |
mm |
7800 |
||||
|
Min.right angle aisle width |
mm |
8500 |
||||
|
Performance |
noload/full load |
Travel speed |
Km/h |
30/28 |
||
|
Lifting speed |
mm/sec |
320/270 |
||||
|
Max.grade ability |
º |
≥21 |
||||
|
Max.Pull force(full load) |
KN |
180 |
||||
|
Self weight |
kg |
24200/26000 |
||||
|
Chassis |
Tyres |
Front |
2×23.5-25-32PR |
|||
|
Rear |
2×23.5-25-24PR |
|||||
|
Tread |
Front |
mm |
2380 |
|||
|
Rear |
mm |
2380 |
||||
|
Wheelbase |
mm |
3710 |
||||
|
Min.Ground clearance (no load/full load) |
Mast |
mm |
450/400 |
|||
|
Frame |
mm |
500/450 |
||||
|
Power Unit and Control |
Battery |
V/AH |
24/100×2 |
|||
|
Engine |
Model |
6CTA8.3-C240 |
||||
|
Manufacture |
Cummins |
|||||
|
Rated output |
Kw/rpm |
179/2200 |
||||
|
Rated torque |
N.m/rpm |
1028/1500 |
||||
|
Fuel tank capacity |
L |
220 |
||||
|
Transmissions |
Type |
Hydraulic |
||||
|
Shift |
Front/rear |
2/1 |
||||
With technological innovation, our product configuration and parameters will continue to change without notice;if there is any doubt;
the specific confirmation of our international trade sales shall prevail.
Optionals
FAQ
Q: 1. Why choose us?
Q: 2. What is the product range of our factory ?
Q: 3. What payment terms can we accept?
Q: 4. What Certificates do we have?
Q: 5.How about our delivery time?
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q: 6. Can we provide OEM service?
