In the field of warehousing and logistics, various types of forklifts are designed to meet different operational environments and requirements. Among them, three-wheel and four-wheel counterbalance forklifts each demonstrate unique design principles and performance advantages in specific application scenarios. This article aims to explore the basic concepts, structural differences, operational characteristics, and applicable scenarios of these two types of forklifts. We hope to provide valuable reference information for logistics managers and equipment purchasers, aiding them in making more informed choices when faced with complex conditions such as limited warehouse space, high storage density, or the need for long-distance transportation.

Turning Radius:

1. Three-Wheel Electric Forklifts:
- The turning radius of three-wheel electric forklifts is smaller, capable of achieving a 90° in-place turn. This makes them more flexible in narrow aisles, suitable for narrow aisle logistics warehouses. For example, some models of three-wheel electric forklifts have a turning radius about 400mm smaller than their four-wheel counterparts of the same tonnage.
2. Four-Wheel Electric Forklifts:
- Due to their structure, four-wheel electric forklifts cannot achieve in-place turning, resulting in a larger turning radius and requiring wider aisles for operation.

Stability:

Three-wheel electric forklifts, with only one rear wheel that can rotate 90 degrees left and right, have less stability compared to four-wheel counterbalance electric forklifts. Nevertheless, both types of electric forklifts must undergo four stability tests on a tipping test platform before leaving the factory. These tests include longitudinal stability during full load stacking, full load travel, and lateral stability during full load stacking and no-load travel. The stability test standards and data requirements for three-wheel and four-wheel forklifts are identical, ensuring the safety of three-wheel forklifts in use.

Applicable Scenarios:

1. Three-Wheel Forklifts:
- They occupy less aisle space, enhancing space utilization and are suitable for indoor applications such as warehouses and logistics facilities. They are also suitable for outdoor operations with no strict ground requirements.
2. Four-Wheel Forklifts:
- Their larger turning radius and higher stability make them more suitable for scenarios requiring greater stability.

Cost:

Three-wheel electric forklifts have a compact design and usually use European standard batteries, resulting in higher costs. Additionally, the 90° turning capability requires a swivel bearing supporting the rear wheel, increasing the overall cost of the vehicle. Four-wheel electric forklifts, on the other hand, use mature components, making them relatively less expensive.

Load Capacity:

The load capacity of three-wheel forklifts is generally lower than that of four-wheel forklifts. Therefore, when transporting goods weighing less than 2 tons in a warehouse, three-wheel electric forklifts can be the first choice; for goods over 2 tons, considering stability, four-wheel forklifts are preferable.

Which is Better: 4-Wheel or 3-Wheel Forklift?

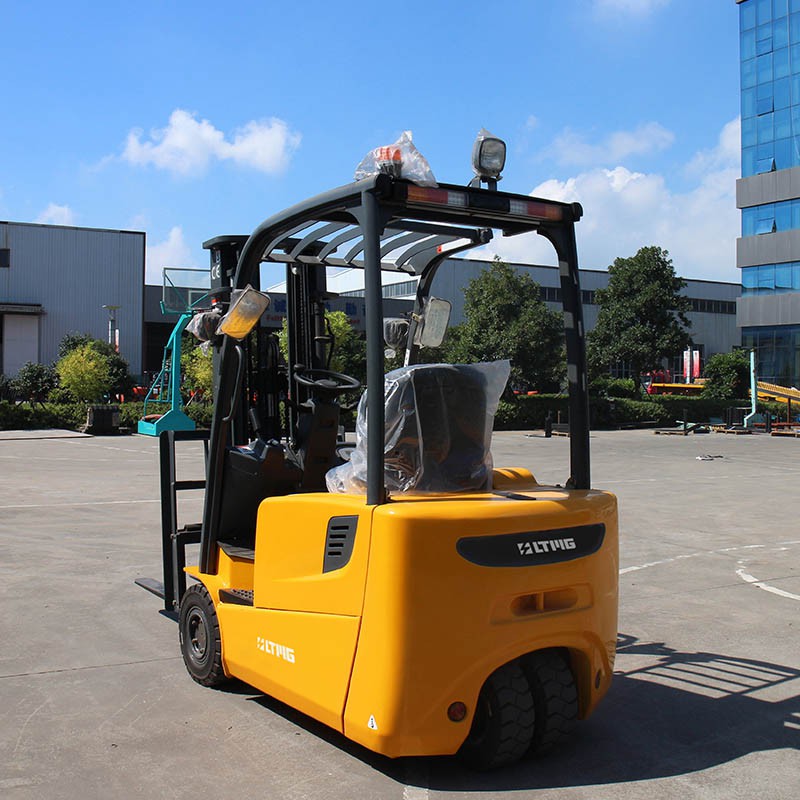

1. Advantages of Three-Wheel Electric Forklifts:
- They include high operational sensitivity, strong flexibility, high lifting height, strong handling capability, and ease of operation. These features make them excellent performers in narrow areas, demonstrating superior cost-effectiveness. Additionally, three-wheel forklifts use microprocessor-controlled AC technology and maintenance-free iron batteries combined with fast-charging technology, greatly reducing operational costs.

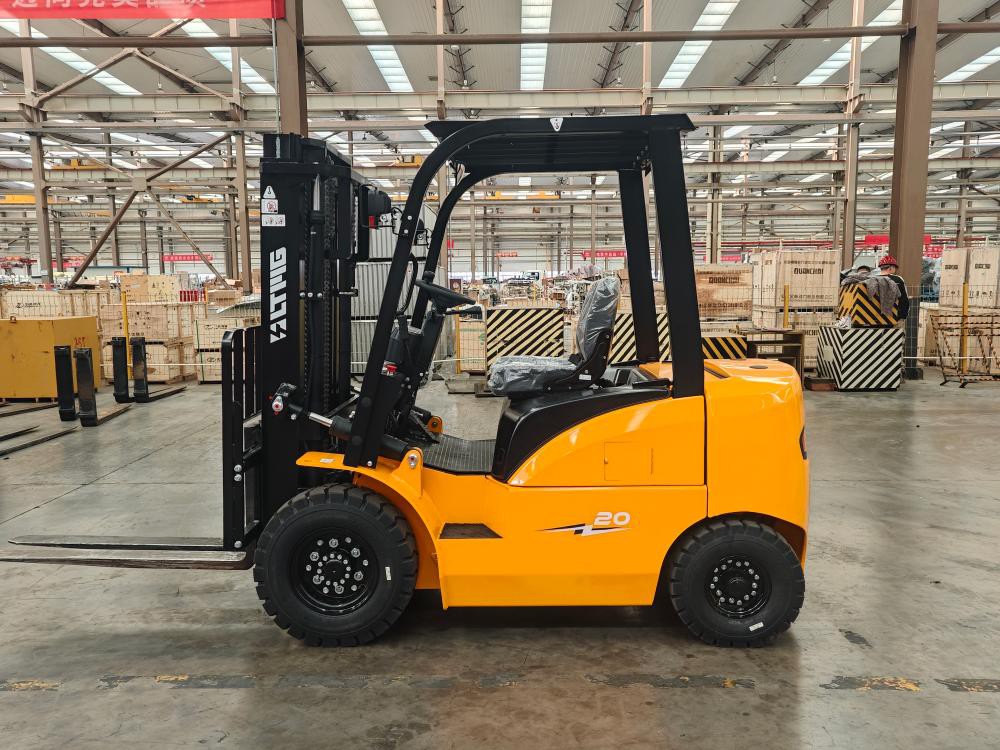

2. Advantages of Four-Wheel Electric Forklifts:
- While three-wheel forklifts have significant advantages in flexibility and operational sensitivity, making them suitable for narrow areas, they come with higher costs and are not suitable for uneven ground. Four-wheel electric forklifts, on the other hand, perform better in terms of stability but may have higher costs in some application scenarios.

Application Scenarios in Different Industries:

Three-wheel electric forklifts, due to their compact and flexible characteristics, are more suitable for small spaces and floor operations. For example, they are widely used in industries such as pharmaceuticals, logistics, feed, tires, and household appliances. They are also suitable for horizontal transportation, stacking in narrow aisles, and cross-floor transportation, easily handling various types of elevator tasks.

In contrast, four-wheel electric forklifts, with their high load capacity and strong traction, are suitable for scenarios such as warehousing logistics, production manufacturing, and port freight. Their main features include advanced AC drive motors and hydraulic motors, allowing them to operate smoothly on uneven surfaces and slopes, with smoother lifting and lowering of the forks.

When choosing between three-wheel and four-wheel forklifts, there is no absolute superiority; the suitability depends on your specific needs. Three-wheel forklifts excel in narrow spaces and light to medium load tasks; four-wheel forklifts, with their strong stability and heavy load capacity, are better for open area operations.

As a Chinese forklift expert with twenty years of manufacturing experience, LTMG offers a wide range of forklift models to precisely match your work scenarios. Contact us for professional advice and quotes, and let LTMG be your ideal partner in material handling.
